Free App Smart Access Control Bluetooth Control Board
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|---|
| Productivity: | 500000 |
| Supply Ability: | 5000 |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | EXW |
| Certificate: | IP66,CE,Rohs |
| HS Code: | 8543709990 |
| Transportation: | Air |
| Port: | Shenzhen |
Android open-door Smart Access Control Bluetooth Control Board with Free APP
Access controller
> APP support Android 4.3 and IOS7.0 above
> Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
> Can connect with any reader with Wiegand 26~37 bits output
> Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output
bluetooth access controller
| User Capacity | 1,000 |
|
Opearting Voltage Idle Current |
9-24V DC <20mA |
|
Relay Adjustable Relay Output Time Lock Output Load |
One(NO,NC,Common) 1-99 Seconds (5 seconds default) 2 Amp Maximum |
|
Wiegand Interface Input Output |
Wiegand 26-37 bits Wiegand 26-37 bits (for user transfer) |
|
Envoritment Operating Temperature Operating Humidity |
Indoor -40oC - 60oC (-40oF-140oF) 0-90% RH |
|
Physical Colour Dimensions Unit Weight Shipping Weight |
ABS Shell Black(White optional) L65 x W54 x D19 mm 40g 100g |

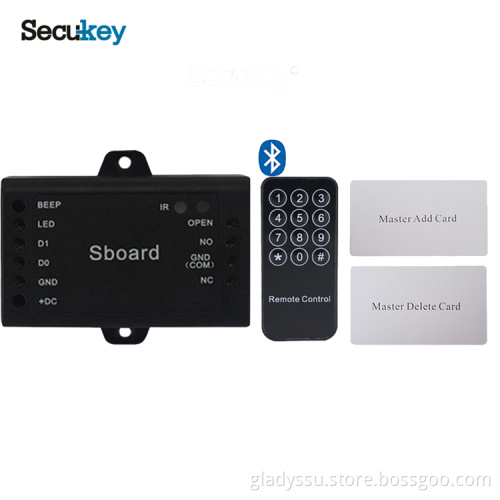

Bluetooth Controller Sboard Introduction>>>
The Sboard is a mini single door control panel,can work with any Wiegand 26-37 bits output reader.It uses Atmel microcontroller to assure stable performance,and equips with an infrared remote control for easy operation.The Sboard supports 1,000 users, all user data can be transferred.
1. Reply your enquiry in 12 working hours.
2. Experienced staff reply all your questions in fluent English.
3. Special discount and protection of sales area provided to our agent.
4. A team of designers and engineers are capable to create new items according to personal request.
5. Customized design is avalibale.
6. We accept small qty order, and also welcome OEM and ODM.
7. We accept TT, Paypal, Western Union.
8. Small amount by Paypal or Western Union; Big amount by bank transfer.
9. We have professional shipping guys and forwarder help us to arrange shipment.
