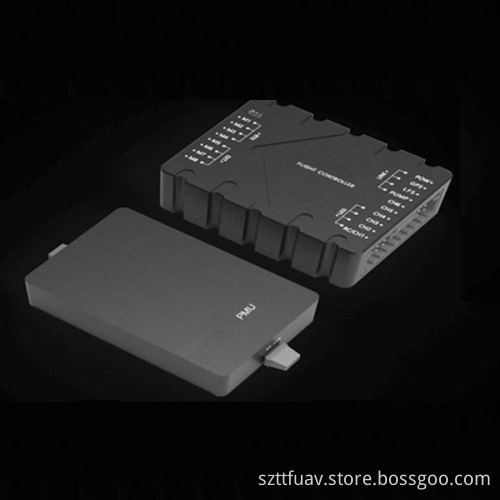

AG Drone T1 Flight Controller

Shenzhen TitanFlying Technology Co., Ltd is not an easy task to order or purchase from distant supplier, especially in international trade. This is especially the case with China, due to different barriers in both culture and language. Finding the right cheap UAV drone supplier will greatly reduce the purchasing cost of UAV drones for sale, guarantee product quality and shorten procurement cycles.

Autonomous operation
Terrain following
High positioning accuracy
Low voltage alarm
Pesticides monitoring
T1 flight controller is a mature flight controller for agricultural UAV. Diy quadcopter flight controller provides rich and practical function that can meet the multiple requirements of the current agricultural UAV. By the integration of high precision sensor, the application of advanced industrial precision calibration algorithm as well as reasonable intelligent operation mode, the more efficient, accurate and convenient way of plant protection work can be realized.
 Autonomous operation/ One key takeoff and landing
Autonomous operation according to the scheduled route, once the route is planned, it can be reused. Automatic takeoff or landing can be achieved by a switch.

Terrain following/ Height hold
The relative height between aircraft and crops can be maintained with high precision radar. The track is guided by the integrated navigation system, which can make sure that the flight is a straight line.

High positioning accuracy/ Long distance cruise
Support GPS, reliability is improved. Can automatically work even if out of the sight distance.

Low voltage alarm/ Resume work
Support voice alarm when low voltage and record current position before auto return. After replacing the battery, return to break point and resume work automatically.

Pesticides monitoring/ Uniform spraying
Support monitor the pesticide dosage; voice alarm and auto return are performed when there is no pesticide. After adding the pesticide, return to break point and resume work automatically.

Reliable algorithm/ Stable attitude
With high precision IMU and robust control algorithm, the aircraft has stable attitude and high anti-interference.

Monitoring / Broadcast function
Support cell phone ground station, which can measure the location of plots, set parameters and monitor flight status, voice announcements is integrated in it.

Basic Parameters
Flight Mode Attitude mode; GPS mode; AB point operation mode
Applicable Models Quadcopter (Type I, II)
Hexacopter (Type I, V, and IY Co-Axial Double-propeller, Type YI Co-Axial Double-propeller, Irregular-shaped 4-axis and 6-propeller)
Octocopter (Type I, V, and X Co-Axis Double-propeller, Irregular-shaped 6-axis and 8-propeller)
ESC PWM ESC with output lower than 490HZ
Max. Output Channels 8
RecommendedRemote PCM or 2.4GHZ, at least 8 channels remote controller
Receivers S.BUS, PPM and PWM
NO. ofCPU cores 5-core
Protective Functions Semi-automatic operation mode
AB point operation mode
Breakpoint continued spraying function
Flow control function
Out of control or hovering or returning
Low power alarm and return landing protection
Flight Characteristics
Hovering Precision Horizontal Direction: ±2m
Vertical Direction: ±0.8m
Max Angle of Inclination 30°
Max. Yaw Speed 150°/s
Max. Vertical Speed 6m/s
Wind Tolerance Sustained Wind: Scale 3
Gust: Scale 4
Electro-mechanical Characteristics
Working Voltage 2-12S
Power Consumption <4W
Operating Temperature 10℃～60℃
Seismic Peak <1G
