0.98N Operating Force Switch

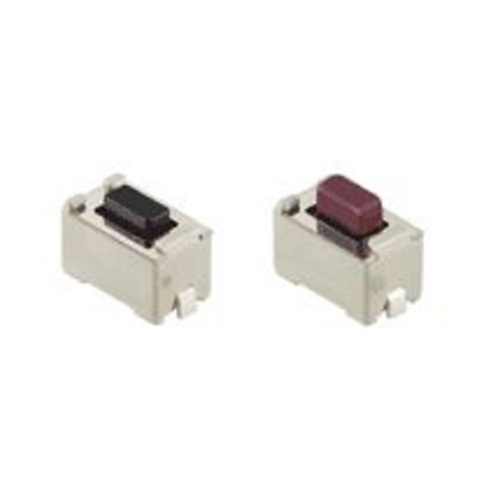

SKQMATE010 is a 6×3.5mm small surface mount switch of ALPS. It is a SKQM series, long-leg (4.3mm, 5.0mm height) type. This product is mostly used in wearable terminals, navigation systems, and car audio equipment. You can consult us for the materials you need according to your own actual needs, and we will provide you with the most suitable solution.

Product number:SKQMATE010

Type:Surface mount

Action:0.98N

Operation direction:Top push

Stroke:0.25mm

Operating life (5mA 5V DC):50,000 cycles

Initial contact resistance:500mΩ max

Button color:Black

Height:h=5mm

Series:Sharp feeling type

Operating temperature range:-30℃ to +85℃

Maximum rating:50mA 12V DC

Minimum rating:10µA 1V DC

Electrical properties

Insulation resistance:100MΩ min. 100V DC for 1min.

Withstand voltage:250V AC for 1 min.

Durability

Vibration resistance:10 to 55 to 10Hz/min, full amplitude 1.5mm in X, Y, Z directions for 2 hours each

Environmental resistance

Cold resistance:-30±2℃ for 96h

Heat resistance:80±2℃ for 96h

Humidity resistance:60±2℃, 90 to 95%RH for 96h

Minimum order unit (pcs.)

Japan:2,000

Export:2,000
