One-way Action Switch with Slide Bar Height 3.3mm

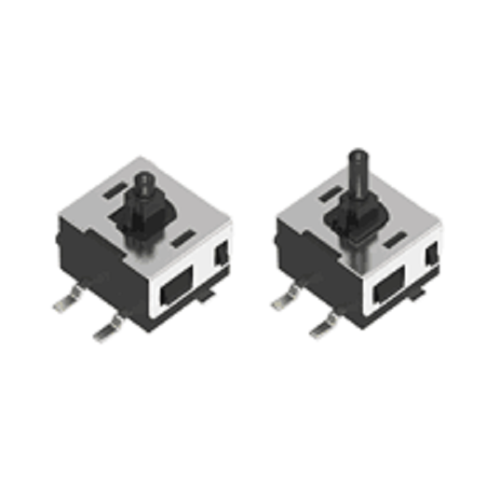

SPVE210100 is a small one-way switch of ALPS, 3.4×3.0mm, the smallest level in the industry, and it can correspond to small digital devices. The height of the sliding rod is 3.3mm, the ON position is 3.0mm, and the full position stroke is 2.0mm. This product is mostly used in personal audio, camera, PC and peripheral equipment, mobile phone and peripheral equipment. You can communicate your needs with us, and we will recommend the most suitable products for you.

Product number:SPVE210100

Number of circuits:1

Number of contacts:1

Terminal shape:For PC board (Reflow)

Action:0.3N max.

Height of sliding rod (mm):3.3

ON position (mm):3.0

Full stroke position (mm):2.0

installation method:Low-profile

Operating temperature range-10℃ to +60℃:

Maximum rating/minimum rating (resistive load):0.1A 30V DC/50μA 3V DC

Electrical properties

Contact resistance (initial/after life):500mΩ max./1Ω max.

Insulation resistance:100MΩ min. 100V DC

Withstand voltage:100V AC for 1 minute

Mechanical behavior

Terminal strength:0.5N for 1 minute

Operating strength:5N

Durability

No load life:50,000 cycles 1Ω max

Load life (maximum rated load):50,000 cycles 1Ω max

Environmental resistance

Cold resistance:-20℃ 96h

Heat resistance:85℃ 96h

Humidity resistance:40℃, 90 to 95%RH 96h

Minimum order unit (pcs.)

Japan:2,800

Export:22,400
