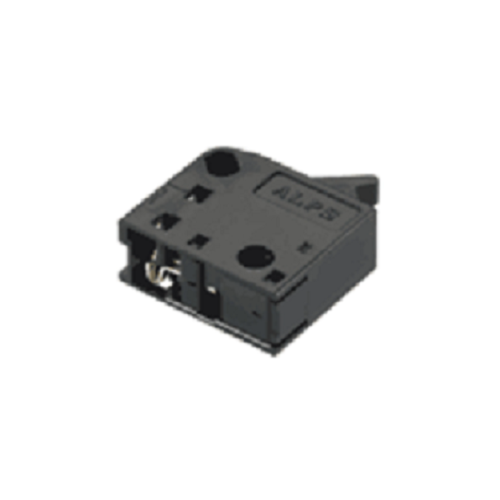

Sleeve connector terminal switch

Product number：SSCW110102

Number of circuits：1

Number of contacts：1

Terminal shape：Female connector type

Action force：1N max.

Operating temperature range：-40℃ to +85℃

Maximum rating/minimum rating (resistive load)：0.1A 12V DC/100μA 3V DC

Electrical properties

Contact resistance (initial/after life): 500mΩ max./1Ω max.

Insulation resistance：100MΩ min. 250V DC

Withstand voltage：250V AC for 1 minute

Mechanical behavior

Strength of operation unit：20N

Durability

No-load life：100,000 cycles 1Ω max.

Load life (maximum rated load) ：100,000 cycles 1Ω max.

Environmental resistance

Cold resistance：-40℃ 500h

Heat resistance：85℃ 500h

Humidity resistance：60℃, 90 to 95%RH 500h

Minimum order unit (pcs.)

Japan：2,000

Exit: 10,000
