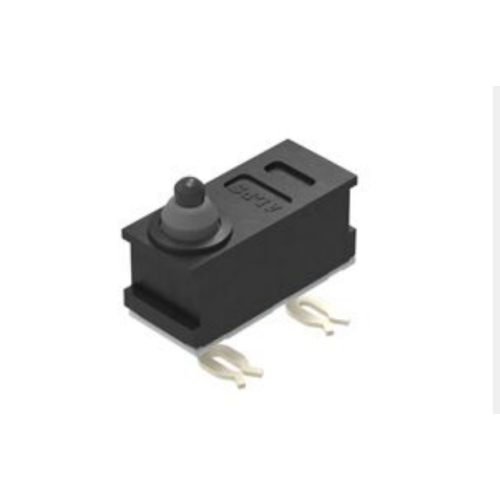

ALPS Waterproof type Detection switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product number:SPVQA10402 Number of circuits one
Connection points one
Switching time limit Non shorting
Shape of operation part Push
Terminal shape Press in (without terminal No.2)
Action force 1±0.5N
Host shape Protuberance free R-type
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 0.1A 12V DC/50 μ A 5V DC
Electrical properties Contact resistance (initial / after service life) 500mΩ max./1Ω max.
insulation resistance 100MΩ min. 500V DC
Withstand voltage 500V AC for 1 minute
Mechanical properties Terminal strength 3N for 1 minute
Strength of operation part 20N
Durability No load life 300,000 cycles 1Ω max.
Load life (maximum rated load) 300,000 cycles 1Ω max.
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan 1,200
Export 4,800
