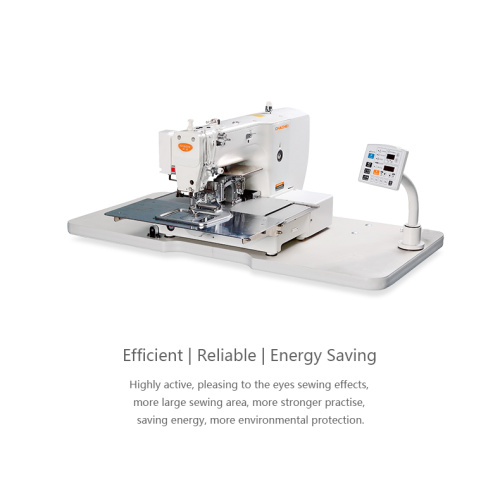

Electric shoe pattern sewing machine
  • Electric shoe pattern sewing machine
  • Electric shoe pattern sewing machine
  • Electric shoe pattern sewing machine
Electric shoe pattern sewing machine
Electric shoe pattern sewing machine
Electric shoe pattern sewing machine

Electric shoe pattern sewing machine

Payment Type:
L/C, T/T, Money Gram, Western Union
Incoterm:
FOB, CFR, CIF, EXW
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
7 Days
Transportation:
Ocean, Land, Air
Port:
Yantian
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 3000sets /month
Supply Ability: 3000sets
Payment Type: L/C,T/T,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Certificate: ISO9001 CE
HS Code: 8452219000
Transportation: Ocean,Land,Air
Port: Yantian
Product Description
Product Description


Product Description


  • Shenzhen Chaocheng Sewing machine company has passed ISO9001 quality management system certification. The automatic sewing machine is produced in compliance with the standards of the light industry China (QB/T 4304-2012). The company not only strictly implements the industry standards in the industrial sewing machine production process, but also upgrades the standards according to the actual needs of customers. Make the pattern sewing machine quality and function more optimized and improved.


  • Compatible with Brother sewing machine system
  • 7" color LCD touch panel contol with easy and convenient operation
  • Uneven prevention function when feeding the materials
  • high speed sewing,low power consumption, improve the producivity and excellent sewing quality
  • It suitable for heavy fabric sewing (leather, thick fabric etc)
  • Automatic sewing for the recycling mask
  • Double shuttle hook, automatic thread break detector.
  • Automatic feeding device with the rail system, precise sewing.



Specifications

Model CC-1010G-01S CC-1310G-01S CC-1510G-01S
Sewing area Max.10×10cm Max.13×10cm Max.15×10cm
Line single needle sewing
Highest sewing speed 2700rpm
Feeding device Intermittent feeding (pulse motor driven mechanism)
Stitch length 0.05-12.7mm
Max.stitches 20,000 stitches/pattern
Work clamp lifter pulse motor drive (height:max.30mm)
Clamp lifter 2 steps, all in one
Clamp lifter ascensional range 22mm
Hook double shuttle hook
Data storage USB or Memory card(CF card can save and edit any sewing patterns)
Motor AC servo motor 550W
Air pressure 0.5Mpa 1.8L/min
Net weight 160kg
Gross weight 208kg
Packing  125*85*135cm
CBM 1.44m³

Product Show

 shoe making

sportshoe making machineautomated shoe machine
