Basic Info

Place of Origin:	China
Productivity:	3000sets /month
Supply Ability:	3000sets
Payment Type:	L/C,T/T,D/P,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001 CE
HS Code:	8452219000
Transportation:	Ocean
Port:	Yantian

Product Description

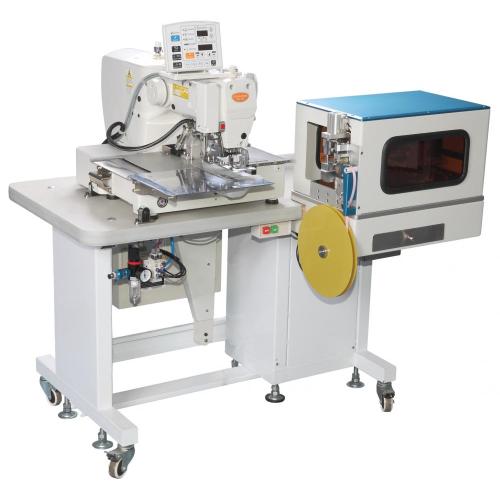

Fully automatic shoe tongue loop sewing machine, with the automatic feeding system, precise sewing, high efficiency for making the sneaker or other shoes, footwear factory use our automatic sewing machine can save 30%-50% labor cost.

Shoelace loop The shoe sewing machine can automatically grasp the tongue, automatic conveying, automatic sewing
Double zone unwinding, automatic conversion, realizing non-stop operation for footwear sewing machine
Solve the problem of low efficiency and low safety in the traditional process of cutting the webbing and sewing webbing separately, and integrate the process, which can greatly improve the efficiency in the industrial sewing machine

Model	CC-2210G-02A-XS
Sewing area	Max.22×10cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	divided
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	280kg
Gross weight	350kg
Packing	12590135cm
CBM	1.52m³

shee lace sewing machine
