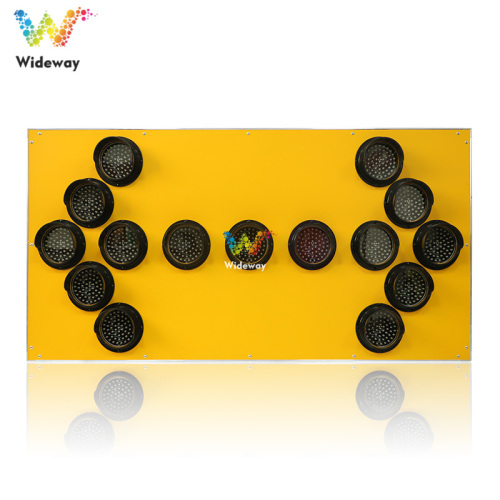

Road Construction LED Traffic Arrow Board Lamp
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
The characteristics of the vehicle-mounted Folding stand aluminum led traffic arrow board:
1. Vehicle-mounted Folding stand aluminum led traffic arrow board with
lifting brackets are widely used in dangerous sections of roads,
bridges, bends, highways, police cars and other potential safety
hazards, prompting drivers or pedestrians to pay attention, can
effectively play a warning role and avoid traffic accidents And
accidents.
2. The vehicle-mounted Folding stand aluminum led traffic arrow board
with lifting bracket is composed of 15 C85MM pixel tubes, which are all
potted with three anti-paints, and the waterproof level reaches IP65
3. The vehicle-oriented brand with lifting bracket uses Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
Folding stand aluminum led traffic arrow board
1. Parameters of vehicle-mounted Folding stand aluminum led traffic arrow board:1. Product model: WDM-1200*600-DXP-01-R
2. Product size: 1200*600*60MM
3. Number of lamp beads: 15*25 tubes (100-type tube)
4. Lamp bead color: yellow
5. Yellow burst flashing lights: 2
6. Lamp beads category: Taiwan Epistar chip lamp beads
7. Yellow wavelength: 590-595NM
8. Service life: 100000H
9. Shell material: aluminum plate
10. Working temperature: -40℃-65℃
11. Working voltage: DC24V
12. Control mode: remote control/manual button control
13. Working mode: flashing
14. Visible distance: ≥1000M
15. Applicable venues: sprinkler, engineering truck, garbage truck, etc.
5. The engineering-grade 3M reflective film is used on the side seam of the vehicle guide card with lifting bracket, which has the best reflective effect and waterproof effect.
6. The controller of the vehicle-mounted guide plate with lifting bracket adopts a panel with 15-light guide plate synchronous LED display, and the panel is installed in the cab, and it will clearly know the working situation behind. Convenient for the driver and strong controllability.
The installation method of the 25-lamp lifting barricade arrow lamp:
Installation method
There are screw holes on the support base, just use screws to fix
Just fix the car guide plate on the roof
The control instructions of 25-lamp lifting barricade Folding stand aluminum led traffic arrow board:
Control instructions
1. Controller control
Select switch by pattern
Can be arbitrarily according to the different use environment
Change the display pattern of the guide card.
Tip: The display pattern of the controller and the guide card
The display pattern is consistent, the controller can be placed
The cab for driver control.
