The basic parameters of the Countdown Timer 200mm Led Traffic Pedestrian Cross Light:
Product model: WDM-JD200-2-RG
1. Product size: 550*270*300MM
2. Color of lamp beads: red green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 90 for red and green
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal or vertical
9. Shell material: PC
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: 8W each for red and green

The characteristics of Countdown Timer 200mm Led Traffic Pedestrian Cross Light:
1. The 200mm red cross green signal LED warning traffic light use Taiwan wafer chip lamp beads, high brightness, high refresh rate, and long service life.
2. Outlet holes are designed on the back of the 200 type red cross green arrow two lights, which not only facilitates the outlet, but also has a good waterproof effect.
3. The sunshade cover of the 200 type red cross and green arrow two lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. The two lights of type 200 red cross and green arrow are installed by L-shaped bracket, which is very convenient for assembly.

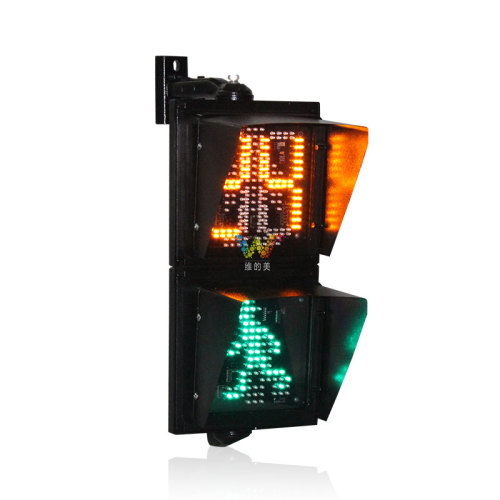

Three, the physical picture of the Countdown Timer 200mm Led Traffic Pedestrian Cross Light:

4. Installation method of Countdown Timer 200mm Led Traffic Pedestrian Cross Light:
Installation method: horizontal installation
(1) A screw is left at both ends, unscrew the nut above the screw,
(2) Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
(3) The sun visor is installed on the upper part of the lamp, put the sun visor on the lamp, and tighten the screws to the corresponding holes.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are just the same.
Note 2 points,
1. The visor is on the upper part of the lamp 2. The outlet hole is facing down (as shown in the picture):
5. Wiring method of two lights of type 200 red cross and green arrow:
1. Wiring DC12V/24V:
(1) Red and black wire-red fork negative electrode;
(2) Red wire-positive electrode;
(3) Green line-negative pole of green arrow;
2. Connect to 220V:
(1) Black line-public zero line;
(2) Red line-red cross fire line;
(3) Green line-green arrow fire line;
6. Details of the accessories of the 200 red and green arrows and two lights:
(1) Lamps: 1 (2) Sunshade: 2 (3) L-shaped brackets: 2 (4) Instructions: 1 copy (5) Qualification certificate: 1 (6) M3 screws: 8

Installation for the Countdown Timer 200mm Led Traffic Pedestrian Cross Light

Application for the Countdown Timer 200mm Led Traffic Pedestrian Cross Light
