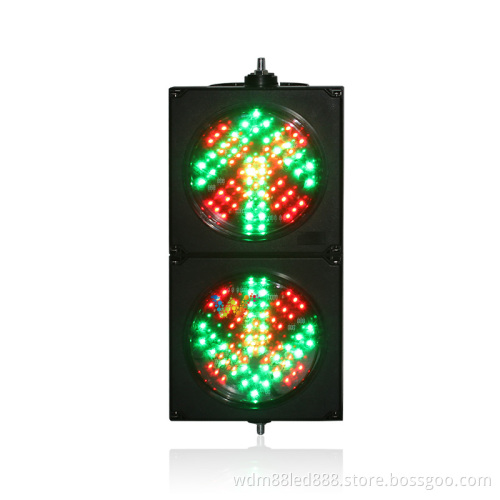

parking lots green arrow led traffic light 200mm
-
$65.00≥2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Parameter details of parking lots red cross green arrow led traffic light 200mm:
Product model: WDM-CD200-2-PC is mainly used in driving schools, intersections and other places.
1. Product size: 500*250*100MM
2. Color of lamp beads: red green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 45*2 red crosses and 36*2 green arrows
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
8. Installation method: horizontal or vertical
9. Shell material: PC
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: red fork 5W green arrow 4.5W
1.200mm red cross green arrow single lamp adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2.200mm red cross green arrow single lamp is designed with outlet hole on the back, which is not only convenient for outlet, but also has good waterproof effect.

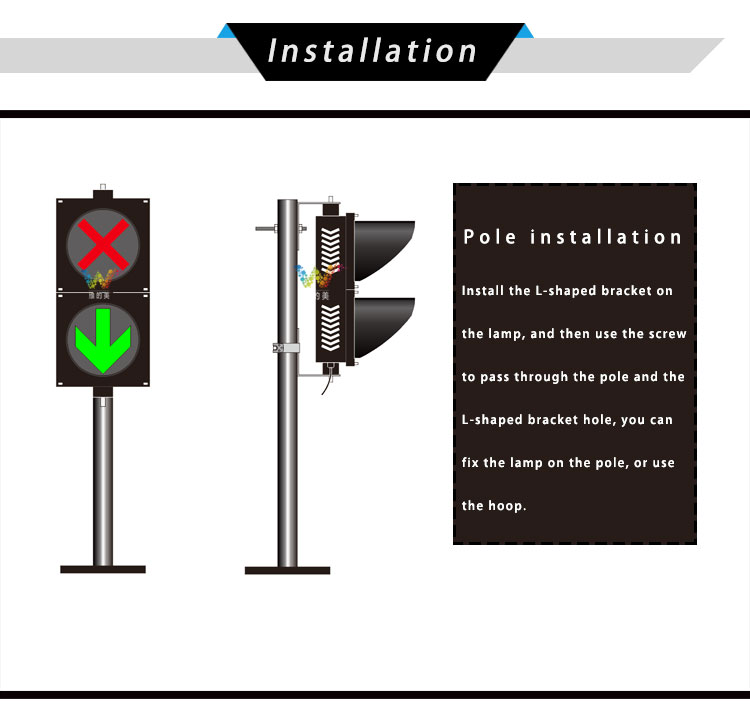

Installation method: horizontal installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the hole position of the signal L bracket, and use a suitable screw to pass through the light pole,
Put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are just the same.
Note 2 points,
1. The sun visor is on the upper part of the lamp
2. Outlet hole facing down (as shown)
4. Details of accessories for 200mm red cross and green arrows traffic light:
(1) Lamps: 1 set
(2) Instructions: 1 copy
(3) Qualification certificate: 1 copy
(4) L-shaped bracket: 2
(5) Sunshade: 2
(6) M4 screws: 8
In addition to the 200mm red cross and green arrows, We also produces other types of traffic lights
Pedestrian Traffic Light
Mini Traffic Light Module
Led Traffic Light Module
Traffic Light Replacement
Led Traffic Light Replacement
Solar Warning Flashing Light
Solar Warning Traffic Light
Highway Fog Light
Product model: WDM-CD200-2-PC is mainly used in driving schools, intersections and other places.
1. Product size: 500*250*100MM
2. Color of lamp beads: red green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 45*2 red crosses and 36*2 green arrows
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
8. Installation method: horizontal or vertical
9. Shell material: PC
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: red fork 5W green arrow 4.5W
17. Working mode: red cross and green arrow
1.200mm red cross green arrow single lamp adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2.200mm red cross green arrow single lamp is designed with outlet hole on the back, which is not only convenient for outlet, but also has good waterproof effect.
3.200mm red cross green arrow single lamp is made of PC material, which has good waterproof and dustproof effect and simple installation.
4.3200mm red cross green arrow single lamp each lamp and the lamp this adopts a snap-type design, which facilitates the inspection and maintenance of the product.
Installation method: horizontal installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the hole position of the signal L bracket, and use a suitable screw to pass through the light pole,
Put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are just the same.
Note 2 points,
1. The sun visor is on the upper part of the lamp
2. Outlet hole facing down (as shown)
4. Details of accessories for 200mm red cross and green arrows traffic light:
(1) Lamps: 1 set
(2) Instructions: 1 copy
(3) Qualification certificate: 1 copy
(4) L-shaped bracket: 2
(5) Sunshade: 2
(6) M4 screws: 8
In addition to the 200mm red cross and green arrows, We also produces other types of traffic lights
Pedestrian Traffic Light
Mini Traffic Light Module
Led Traffic Light Module
Traffic Light Replacement
Led Traffic Light Replacement
Solar Warning Flashing Light
Solar Warning Traffic Light
Highway Fog Light
