led warning traffic signal light with countdown timer
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Parameter details of led warning traffic signal light with countdown timer:
Product model: WDM-DJ300-03 is mainly used in driving schools, intersections and other places.
1. Product size: 1050*350*110mm (without decorative edge)
2. Number of lamp beads: 156 red and green full plates, 112 red and green countdowns
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: yellow PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Working voltage: AC85V-265V a small amount of DC12V/24V
13. Rated power: red 18W green 22W
15. Installation method: vertical installation
1.led warning traffic signal light with countdown timer adopt Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
2.led warning traffic signal light with countdown timer are designed with outlet holes on the back, which not only facilitates the outlet, but also has a good waterproof effect.
The sunshade cover of led warning traffic signal light with countdown timer is made of PC material, which has good waterproof and dustproof effect and simple installation.
3.led warning traffic signal light with countdown timer each light and the light adopts a snap-type design, which facilitates the inspection and maintenance of the product.
4.led warning traffic signal light with countdown timer with yellow flashing function at night

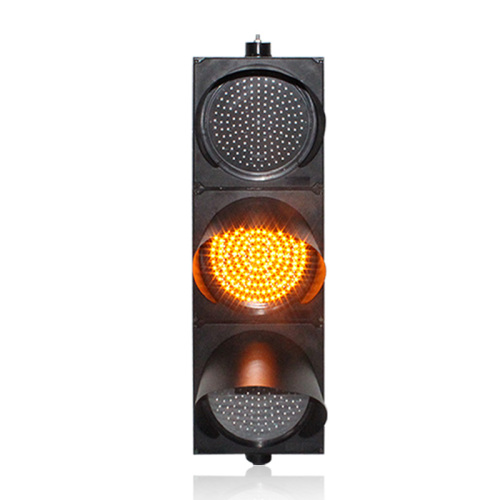

The physical picture of the led warning traffic signal light with countdown timer:
Installation method of led warning traffic signal light with countdown timer:
Installation method: vertical installation1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light rod, drill holes according to the signal L-bracket holes, use a suitable screw to pass through the light rod, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Note 2 points:
1. The sun visor is on the upper part of the lamp
2. Outlet hole facing down (as shown)
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red light fire line;
The green line is the green light fire line;
The yellow line is the yellow light fire line;
Details of the accessories of the led warning traffic signal light with countdown timer:
(1) Lamps: 1
(2) Instructions: 1
(3) Certificate: 1
(4) L-shaped bracket: 2
(5) Sunshade: 3
(6) M4 screws: 16
led warning traffic signal light with countdown timer packaging pictures:In order to ensure that the countdown signal lights are delivered to the guests by freight or ship intact, our Weimei production of traffic lights will be shipped after strict packaging, please see our packaging pictures:
