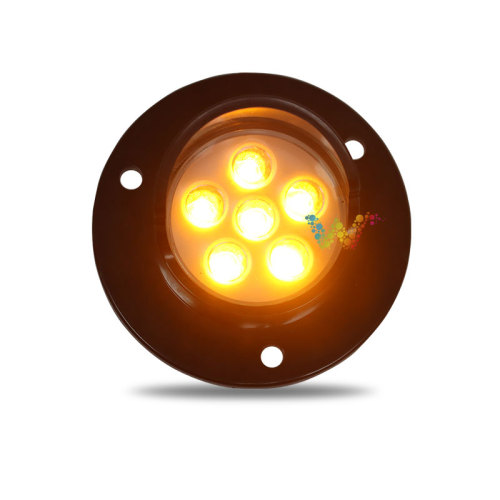

50mm Arrow Board Amber Traffic Light Module
C50 pixel tube is generally used for guiding signs, which can be freely arranged and combined into various characters or patterns. It is small in size and exquisite in appearance. It is mainly used in highways, toll stations, vehicles, etc.
Parameter details of the 50mm Arrow Board Amber Traffic Light Module:
Product model: WDM-C50 is mainly used for the parts of thr led arrow board,led traffic warning sign,led warning light and so on.
1. Product size: 82*82*43mm
2. Luminous diameter: 50MM
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Number of lamp beads: 6pcs
5. Lamp beads color: red yellow blue green white
6. Red wavelength: 620-625NM
7. Yellow wavelength: 590-595NM
8. Blue wavelength: 470-475NM
9. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
10. White brightness: 18900-22600MCD
11. Rated voltage: DC12V/24V
12. Protection grade: IP68
13. Rated power: ≤ 5W
14. Shell material: PC
15. Working temperature: -40℃~65℃
16. Service life: 100000H
Features of the 50mm Arrow Board Amber Traffic Light Module:
1. The 50mm Arrow Board Amber Traffic Light Module is one of the components of the 50mm traffic light.
2. The 50mm Arrow Board Amber Traffic Light Module adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
3. The back of 50mm Arrow Board Amber Traffic Light Module is fully potted with three anti-paints, and the waterproof grade reaches IP68.
4.50mm Arrow Board Amber Traffic Light Module with matching sunshade with independent mold opening, unique appearance and beautiful shape.
This is a new and exclusive product of our company. It can be used in driving school to simulate real traffic lights.This can be also used as your indoor or outdoor decorations and a small gift for your lovely children!
MODULES TO SUITS mini 50mm Arrow Board Amber Traffic Light Module
Simple to replace and install in existing 50mm Aspect Traffic lights.
12-24VDC or 85-265VAC voltage rated.
Highly durable poly-carbonate housing, high-brightness led beads.
Double lens for even light distribution,waterproof material,good effect.
3 Year Replacement Warranty.
High temperature resistant material,can withstand high temperature exposure.
purpose of traffic lights module
Used for make of the traffic arrow board
Decoration for restaurants, hotels, clothing stores, villa areas, etc.
Aailiable at the warehouse entrance and so on.
In addition to the 50mm Arrow Board Amber Traffic Light Module, Shenzhen Wide Way Optoelectronics Co., Ltd also produces other types of traffic lights.
1.100mm Pedestrian traffic lights
2. 88mm traffic light
3. Solar traffic light
4. traffic led arrow board, etc.
