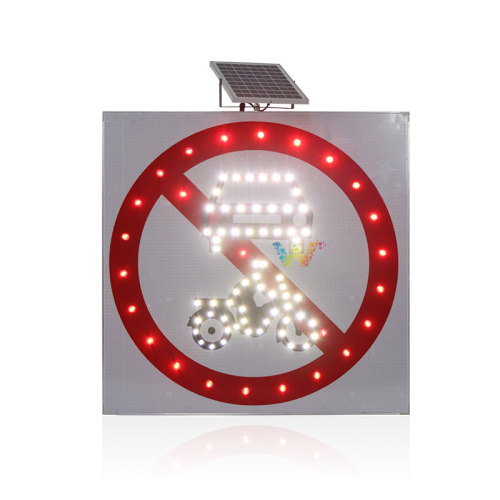

Solar power LED Flashing road safety Traffic signs
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Features of the Solar power LED Flashing road safety Traffic signs:
1. The Solar power LED Flashing road safety Traffic signs is mainly used for the narrowing of the lane, and is installed in a sunny place
2. The Solar power LED Flashing road safety Traffic signs uses Taiwan Epistar chip with our own mold-opening lens, which has longer service life, good stability, high refresh rate, high concentration, and high brightness.
3. The Solar power LED Flashing road safety Traffic signs box body adopts self-moulded aluminum plate with reverse hook design. Using inlaid packaging, the packaging is firm. Not only is it beautiful, it also gives the product a very good protection level
4. The Solar power LED Flashing road safety Traffic signs uses 8W/18V monocrystalline silicon solar panels, which use solar energy to generate electricity, which is energy-saving and environmentally friendly.

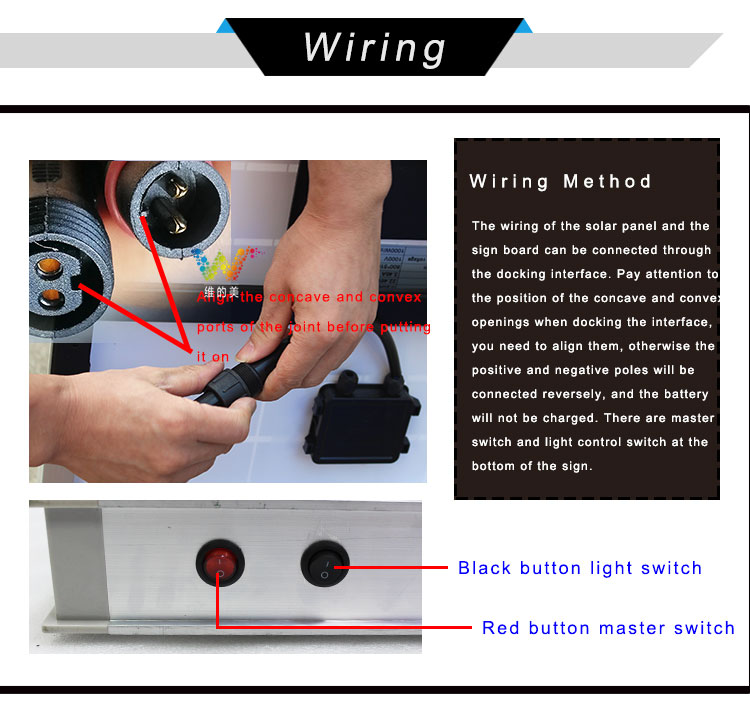

5. There is a power switch and a light control switch at the bottom of the Solar power LED Flashing road safety Traffic signs.
6. The Solar power LED Flashing road safety Traffic signs is installed with a hoop on the back, which is very convenient, firm and easy to disassemble.
7. For the safety of the Solar power LED Flashing road safety Traffic signs, solid rivets are used on the back of the product. The surface adopts flat rivets to make the whole product smooth and smooth.
8. The Solar power LED Flashing road safety Traffic signs uses engineering-grade 3M reflective film. 3M reflective film can produce a strong reflective effect under a certain light source. The reflective brightness of 3M reflective film is 6 times that of traditional logos. In the daytime, the logo can be displayed. Bright white; at night, it provides reliable security for pedestrians in the dark or night operators.9. The product size, speed limit sign number, reflective film, lamp bead color and installation method of the Solar power LED Flashing road safety Traffic signs can be customized according to customer requirements

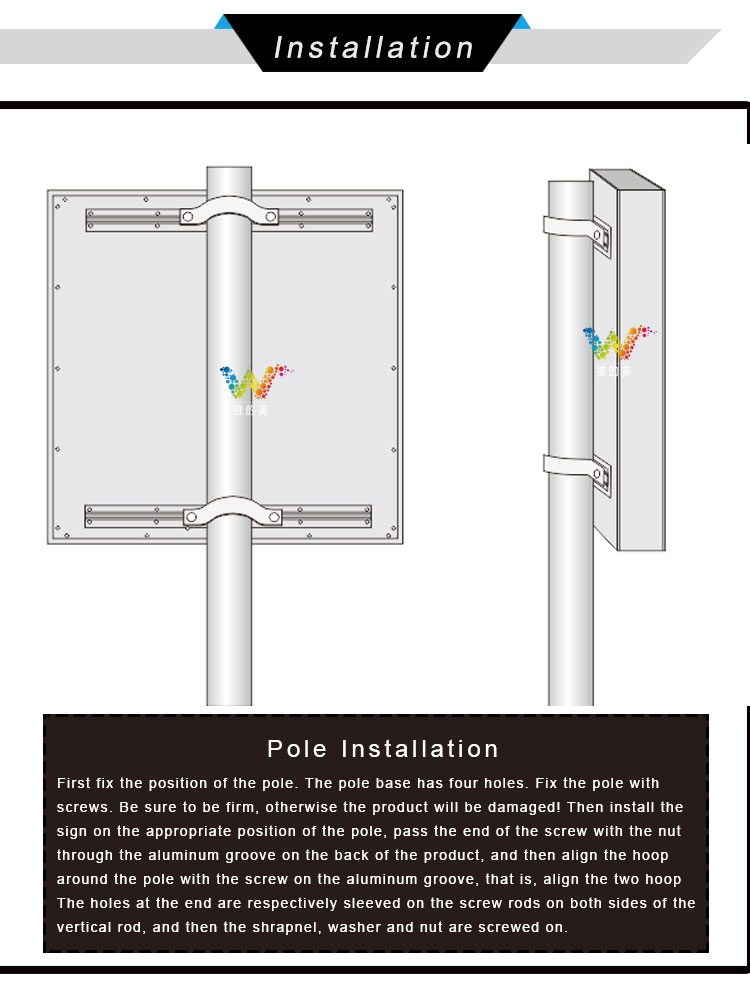

Installation method of the Solar power LED Flashing road safety Traffic signs:
Pole Installation:First fix the position of the pole.The pole base has four holes. Fix the pole with screws. Be sure to be firm, otherwise the product will be damaged! Then install the sign on the appropriate position of the pole, pass the end of the screw with the nut through the aluminum groove on the back of the product, and then align the hoop around the pole with the screw on the aluminum groove, that is, align the two hoop The holes at the end are respectively sleeved on the screw rods on both sides of the vertical rod, and then the shrapnel, washer and nut are screwed on.
Detailed parameters of the Solar power LED Flashing road safety Traffic signs:
1. Product size: 1000*1000*70mm
2. Lamp bead color: yellow or customized
3. Number of lamp beads: customized
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Solar panel: 8W/18V
7. Battery: 5AH
8. Shell material: aluminum shell
9. Working voltage: 12V
10. Working temperature: -40℃~60℃
11. Working mode: stroboscopic
12. Protection level: IP65
13. Commonly used hoop installation: 76MM hoop
The working principle of the Solar power LED Flashing road safety Traffic signs:
The working principle of the Narrowing on the right Solar Led Warning sign can be briefly summarized as: during the day, solar panels absorb sunlight, convert solar energy into electrical energy, and store it in energy storage devices. At night, the electrical energy in the energy storage devices is automatically converted into light energy ( Controlled by a photoelectric switch), the outline of the pattern is drawn through the bright light of the LED to convey traffic information.

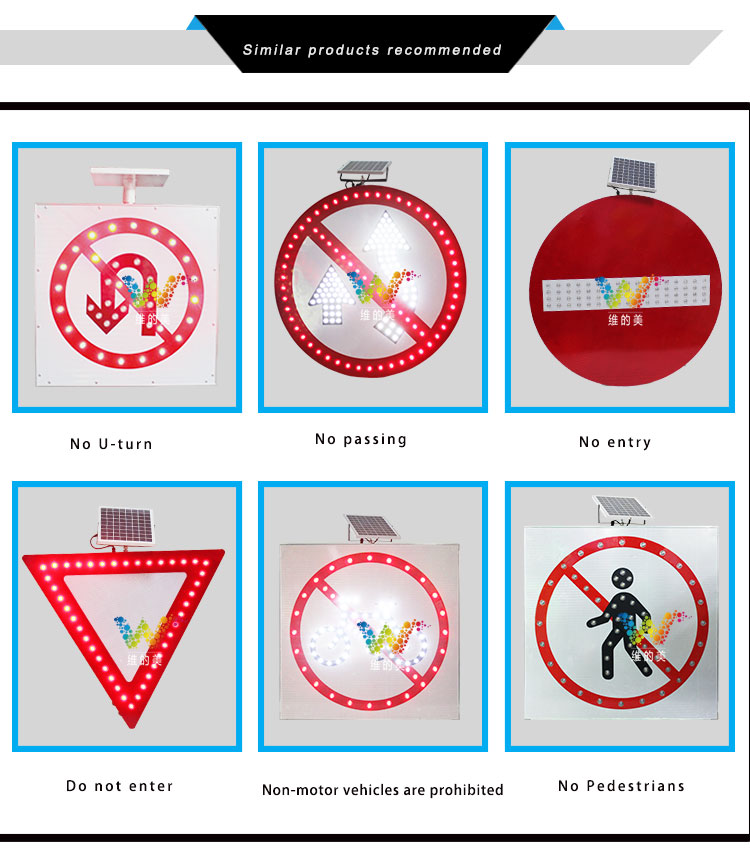

In addition to the Solar power LED Flashing road safety Traffic signs, We also produces other traffic signs:
