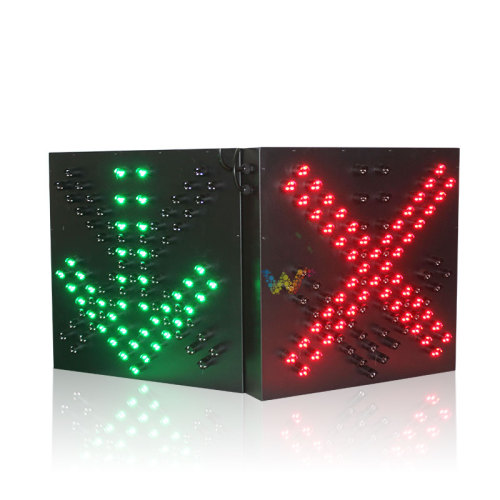

600mm double-sided red cross green arrow Canopy lights
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
The tunnel lane indicator is installed in the highway tunnel to indicate the open and closed state of the tunnel lane. There are three modes of operation: local direct operation, remote PLC direct operation, and remote operation via RS458. A maximum of 16 tunnel lane indicators can be controlled through the RS485 bus, and the address of each tunnel lane indicator can be determined by setting the dial switch to determine the unused address, so as to realize the remote control of the display status of each tunnel lane indicator. The tunnel lane indicator has intelligent display status feedback, which is used for remote PLC or other equipment to detect the display state, and can timely grasp whether each tunnel lane indicator is working properly.
600mm double-sided red cross green arrow Canopy lights product parameters:
1. Product size: 600* 600*110mm/400* 400*110mm
2. Shell material: sheet metal black case, waterproof, dustproof, anti-corrosion, sealing IP653, LED light source: imported Taiwan Epistar chip LED
4. LED wavelength: red 625+5 nm, green 505+5 nm.
5. Single LED brightness: red 5000 ~ 8000 mcd, green 10000 ~ 12000 mcd 6, LED normal life: ≥100000 hours
7. Viewing angle:> 30°
8. Working voltage: AC 185V~265V, 50Hz+3Hz
9. Insulation resistance: ≥10M2
10. Dielectric strength: withstand voltage 1450V
11. Working temperature: -30C ~ 75"C
12. Working humidity: 10% ~ 95%RH
13. Control mode: PLC control; I/O port or RS485
14. Visual distance: ≥800 m
15. Wind pressure resistance: ≥1.5KN/m°
16.Number of lamp beads: Red 4 pcs/tube, green 3 pcs/tube
17.Number of pixel tubes: Red 26*2, green 40*2
Features of the 600mm double-sided red cross green arrow Canopy lights(4R3G):
1.600 type double-sided red cross green arrow (4R3G) adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2. The bottom of the 600 type double-sided red cross green arrow (4R3G) adopts a waterproof connector for outlet, which improves the waterproof ability of the product.
The sunshade of the 3.600 type double-sided red cross and green arrow (4R3G) adopts an assembled design, which is simple and convenient to install.
4. The shell of the Model 600 double-sided red cross green arrow (4R3G) is made of cold-rolled sheet, which has good surface quality, good stamping performance, and excellent processing characteristics. Products made of cold-rolled plates are durable and have a long service life.
The boom of the 5.600 type double-sided red cross green arrow (4R3G) can be adjusted according to the environment, which is simple and convenient.
Installation method of the 600mm double-sided red cross green arrow Canopy lights (4R3G):
1>Installation method of sun visor:
1. Align the trapezoidal bracket with the holes on both sides of the lamp,
2. Pass the M4 screw through the trapezoidal bracket
3. Finally, tighten the screws
4. The installation method of the sun visor is the same as that of the trapezoidal bracket
2>Installation method of L-shaped bracket:
1. Align the holes on the L-shaped bracket with the holes on the side M12
2. Set the gasket into the M12 screw
3. Pass the screw through the L-shaped bracket
4. Finally, tighten the screws
Connection mode of the 600mm double-sided red cross green arrow Canopy lights (4R3G):
Connect to AC220V:
1. Green line: green arrow signal line
2. Red line: red cross signal line
3. Black line: zero line
4. Yellow wire: ground wire
5. Wiring: AC220V
600mm double-sided red cross green arrow Canopy lights (4R3G) manufacturer

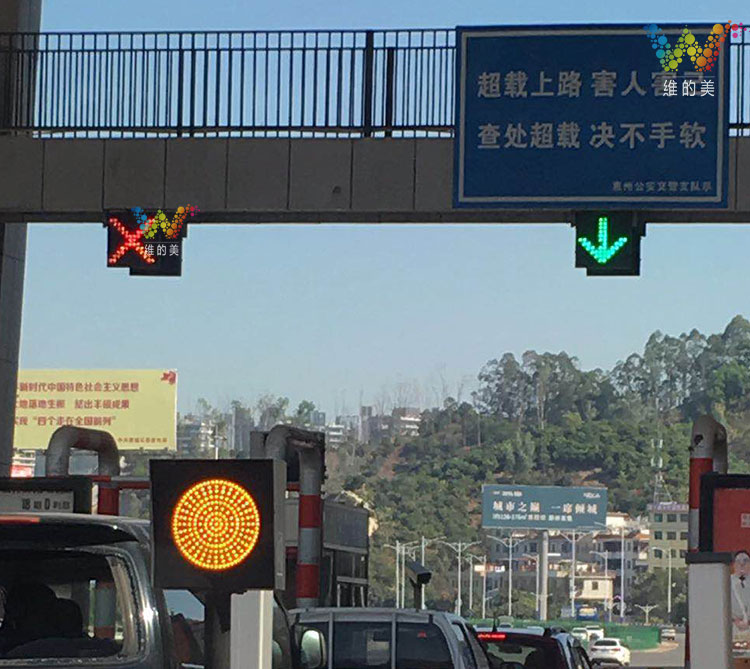

600mm double-sided red cross green arrow Canopy lights (4R3G) is made of cold-rolled board material, can be hoisted, side-mounted, with sunshade, complete accessories, lamp beads using Taiwan Epistar chip, dedicated to expressway toll stations, tunnel lights indicate.
