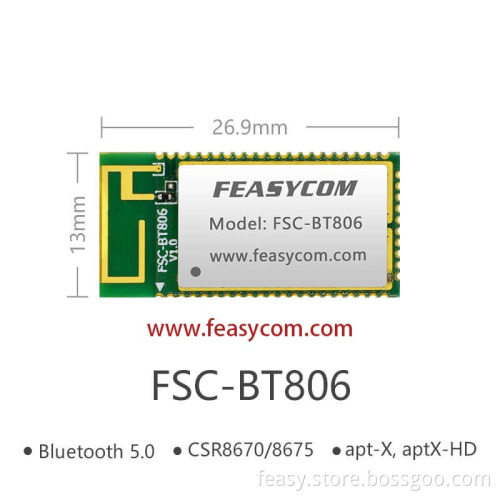

FSC-BT806 | CSR8670/8675 High End Bluetooth Audio Module
- Payment Type:
- T/T, Paypal
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal |
|---|
|
Bluetooth module model
|
FSC-BT806
|
|
Chipset
|
CSR8675/CSR8670
|
|
Bluetooth version
|
Bluetooth 5.0 dual mode(BR/EDR+BLE)
|
|
Frequency
|
2.402 - 2.480 GHz
|
|
Features
|
Apt-X,apt-X LL,apt-X HD,CVC,High quality audio transceiver
|
|
Profiles
|
A2DP,AVRCP,HFP,HSP,PBAP,SPP,HID,GATT
|
|
Dimension
|
13mm*26.9mm*2.2mm
|
|
Transmit power
|
+10dBm
|
|
Antenna
|
Built-in PCB antenna, supports external antenna
|
Main Features:
*Chipset: CSR 8670/8675;
*Bluetooth 5.0 dual-mode specifications
*Mini Size : 13*26.9*2.2mm ,Coverage up to 50m(164ft).
*Max Transmit Power: +10 dBm; Receive Sensitivity: -88 dBm.
*Audio Interfaces: Dual I2S Output/Input Audio Features, SBC and AAC Audio codec
*Support HFP,HSP, A2DP,PBAP, AVRCP, MAP,SPP,BLE profiles
Applications:
*Smart watches & Bluetooth bracelets
* Bluetooth headphone
* Wireless sound bars
* Bluetooth speakers
* Audio transmitters
* TWS(or share me) device
* Multimedia players
* Automotive Hands-Free Kits
* VOIP handsets
* Wearable audio with sensors(health and well-being applications)
