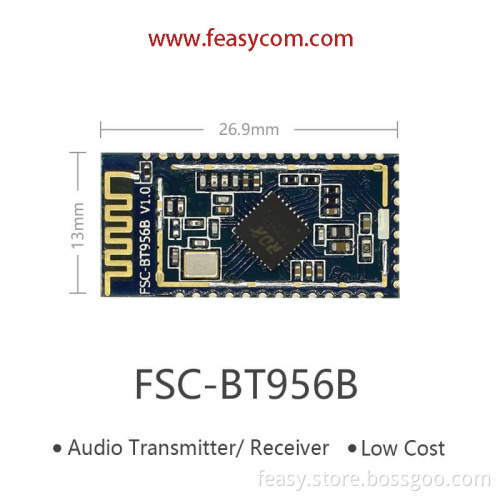

FSC-BT956B | Cost-Down Bluetooth Audio Module Solution
-
USD10≥2 Piece/Pieces
- Payment Type:
- T/T, Paypal
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal |
|---|
The FSC-BT956B is a high performance, highly integrated multi-media system-on-chip solution with Bluetooth connectivity, which specialized in music and audio applications.
Integrating all essential electronic components, including baseband, bluetooth transceiver, power management onto a single system on chip, it offers best in class bill of material, space requirement and cost/feature ratio for bluetooth music and audio application.
|
Bluetooth module model |
FSC-BT956B |
|
Bluetooth version |
Bluetooth 4.2 dual mode |
|
Transmit power |
+8dBm |
|
Profiles |
A2DP,AVRCP,HFP,HSP,PBAP,SPP,GATT |
|
Dimension |
13mm X 26.9mm X 2.4mm |
|
Power Supply |
3.4V ~ 4.35V |
|
Interface |
UART, GPIO, I2C, PWM, etc. |
|
Antenna |
On board antenna |
|
Features |
Low Cost Audio Transmitter/ Receiver |
Features:
*Bluetooth v4.2, supports BR/EDR, BLE
*UART programming and data interface (baudrate can up to 921600bps)
*Audio interfaces: Analog stereo line in
*I2C Master /PWM control interfaces
*Low Cost Audio Solution
*Postage stamp sized form factor
*Up to 4 PWM output
Applications:
*Bluetooth speakers
*Bluetooth music box
*Bluetooth headset or headphone
*Other Bluetooth audio devices
*Audio Transmitting Applications
