Product Description

Basic Parameter

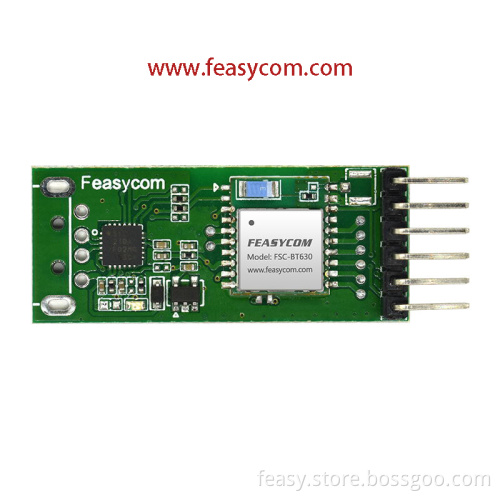

DB006-BT630-USB is a BLE Module 6-Pin Board. It's a development board designed for FSC-BT630 | Small Size Bluetooth Module nRF52832 Chipset

Comparing with the bluetooth module itself, DB006-BT630-Pin is much more convenient & easy for users to do testing. With the Pin Port, the module can be connected to your PCBA directly, time saving, and ensuring the stability. Working with Feasycom's FREE UART tool, users can have the full control of the FSC-BT630 by using AT Commands.

Below you would find more features of the module FSC-BT630.

Features:

* Support wireless microcontroller (MCU) targeting Bluetooth 5.0

* Integrate MCU to execute Bluetooth protocol stack

* Postage stamp sized: 10*11.9*1.7mm

* Low power

* Class 1.5 support(high output power)

* The default UART Baud rate is 115.2Kbps

* GAP, ATT/GATT, SMP, L2CAP profiles

* Bluetooth stack profiles: all BLE protocols

* Integrated temperature sensor

* CE FCC Certification
