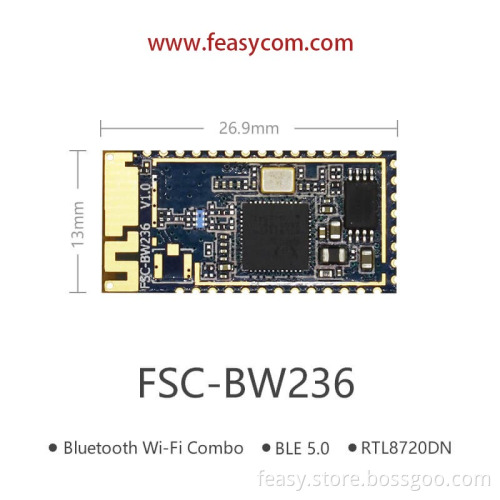

FSC-BW236 | RTL8720DN Chip BLE 5 & Wi-Fi Combo Module
- Payment Type:
- T/T, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T,Paypal |
|---|
Product Description
Product Description
Basic Parameter
Customer can transfer data via UART, I2C and SPI interface, FSC-BW236 supports Bluetooth GATT profiles and Wi-Fi TCP, UDP, HTTP, HTTPS, and MQTT protocols, the Wi-Fi maximum data rate can up to 150Mbps in 802.11n, 54Mbps in 802.11g and 802.11a, it supports install an external antenna to increase wireless coverage
FSC-BW236 Bluetooth & Wi-Fi combo module's parameters:
|
Module Model
|
FSC-BW236
|
|
Wi-Fi
|
|
|
Version
|
802.11 a/b/g/n
|
|
Transmit Power
|
2.4GHz: 17.5dBm(11b), 15.5dBm(11g), 13.5dBm(11n)
|
|
5GHz: 8dBm(11a)
|
|
|
Bluetooth
|
|
|
Version
|
BLE 5.0
|
|
Transmit Power
|
+8dBm
|
|
Other Parameters
|
|
|
Interfaces
|
UART, SPI, I2C
|
|
Power Supply
|
3.0-3.6V
|
|
Dimension
|
13mm x 26.9mm x 2.2mm
|
|
Operation Temperature
|
-20℃ to +85℃
|
|
Storage Temperature
|
-55℃ to +125℃
|
|
MSL Grade
|
MSL 3
|
