Durable Metal Carabiner Clip
  • Durable Metal Carabiner Clip
  • Durable Metal Carabiner Clip
Durable Metal Carabiner Clip
Durable Metal Carabiner Clip

Durable Metal Carabiner Clip

Min. Order:
50 Piece/Pieces
Min. Order:
50 Piece/Pieces
Transportation:
Ocean, Air
Port:
Yantian China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

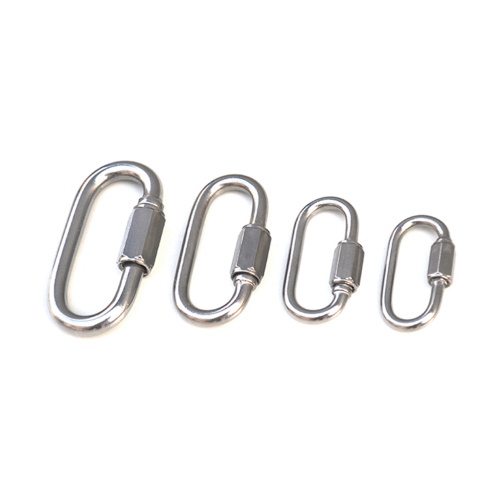

Durable Metal Carabiner Clip

The Durable Metal Carabiner Clip belongs to the Carabiner Shackle Clamp Clasp. (Show the product Durable Metal Carabiner Clip.) Durable Metal Carabiner Clip is widely used in rock climbing, rigging, towing, lifting, outdoor sports, diving, and other industries and sports. (Show the product Carabiner Bolt Snap Hook.) The Durable Metal Carabiner Clip closes the opening with a screw nut, which prevents loosening after twisting the nut, so there is no problem in terms of safety. (Show the product Strong Shackle for Lifting.) Depending on the use environment and endurance force, parts made of stainless steel, zinc alloy, or Aluminum can be selected. The parts can also be made in a variety of colors such as red, blue, green, black, yellow, etc. (Show the product Key Chain Spring Snap Hook.) In addition to the oval, this type of part can also be made into the shape of a triangle or square. The other shapes are also doable according to customer requirements. (Show the product Double Wire Clamp Cable Clip.)


We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

script hook v

Drawing

locking ring pliers

Size Table

B ( mm / inch ) A ( mm / inch ) C ( mm / inch ) D ( mm / inch ) WLL ( Work Load Limit )
3.5 / 0.1378" 36 / 1.4173" 10 / 0.3937" 5 / 0.1969" 180 kgs / 400 lbs
4 / 0.1575" 40 / 1.5748" 11.5 / 0.4528" 5.4 / 0.2126" 220 kgs / 500 lbs
5 / 0.1969" 48.5 / 1.9094" 13 / 0.5118" 6.5 / 0.2559" 320 kgs / 700 lbs
6 / 0.2362" 57 / 2.2441" 14.5 / 0.5709"  7.5 / 0.2953" 400 kgs / 900 lbs
7 / 0.2756" 67 / 2.6378" 16.5 / 0.6496" 8 / 0.3150" 550 kgs / 1200 lbs
8 / 0.3150" 74 / 2.9134" 17.5 / 0.6890" 10 / 0.3937"  680 kgs / 1500 lbs
9 / 0.3543" 83.5 / 3.2874" 19 / 0.7480" 11 / 0.4331" 860 kgs / 1900 lbs
10 / 0.3937" 90 / 3.5433" 20.5 / 0.8071" 12 / 0.4724" 1050 kgs / 2300 lbs
12 / 0.4724" 104.5 / 4.1142" 22.5 / 0.8858" 15 / 0.5906" 1140 kgs / 2500 lbs
