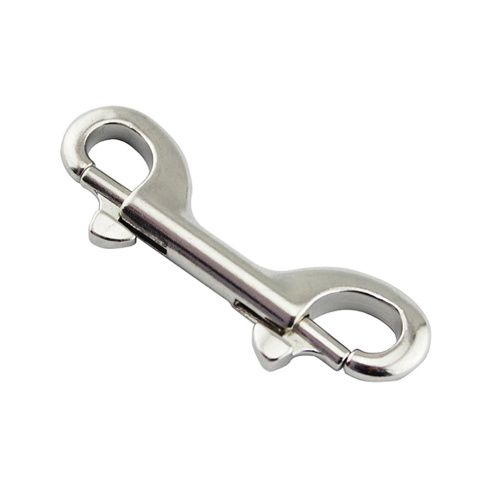

Dual Head Spring Snap Hook
The Dual Head Spring Snap Hook belongs to the Carabiner Shackle Clamp Clasp. (Show the product Durable Metal Carabiner Clip.) This Dual Head Spring Snap Hook, also known as the diving hook, is one of the indispensable pieces of equipment when diving. The material of this hook is stainless steel 316, which has the strongest anti-rust and anti-corrosion properties in stainless steel. (Show the product Carabiner Bolt Snap Hook.) This product can also be used on other occasions where the connection is required. In the case where the requirements for anti-rust performance are not very high, stainless steel 304 or zinc alloy parts can be used to achieve higher cost-efficiency. (Show the product Strong Shackle for Lifting.) Our existing products range in length from 65 mm / 2.5591" to 115 mm / 4.5276". If the existing specifications do not meet customer requirements, we can also produce custom sizes and shapes. (Show the product Key Chain Spring Snap Hook.) Over the years, our company has won the trust of many customers with high-quality products, excellent services, and reasonable prices. If you have a request for this type of product, please feel free to contact us. (Show the product Double Wire Clamp Cable Clip.)
We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.
Drawing
Size Table
A ( mm / inch ) | B ( mm / inch ) | WLL ( Work Load Limit ) | NW ( Net Weight ) |
65 / 2.5591" | 7.5 / 0.2953" | 30 kgs / 65 lbs | 0.03 kg / 0.066 lb |
76 / 2.9921" | 8.5 / 0.3346" | 40 kgs / 90 lbs | 0.04 kg / 0.088 lb |
90 / 3.5433" | 10 / 0.3937" | 50 kgs / 110 lbs | 0.06 kg / 0.132 lb |
100 / 3.9370" | 10 / 0.3937" | 90 kgs / 200 lbs | 0.07 kg / 0.154 lb |
115 / 4.5276" | 12 / 0.4724" | 110 kgs / 240 lbs | 0.098 kg / 0.2156 lb |
