Wire Rope Clip Wire Clamp Dual SUS304 SUS316
  • Wire Rope Clip Wire Clamp Dual SUS304 SUS316
  • Wire Rope Clip Wire Clamp Dual SUS304 SUS316
  • Wire Rope Clip Wire Clamp Dual SUS304 SUS316
Wire Rope Clip Wire Clamp Dual SUS304 SUS316
Wire Rope Clip Wire Clamp Dual SUS304 SUS316
Wire Rope Clip Wire Clamp Dual SUS304 SUS316

Wire Rope Clip Wire Clamp Dual SUS304 SUS316

Get Latest Price
Min. Order:
50 Piece/Pieces
Min. Order:
50 Piece/Pieces
Transportation:
Ocean, Air
Port:
Yantian China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

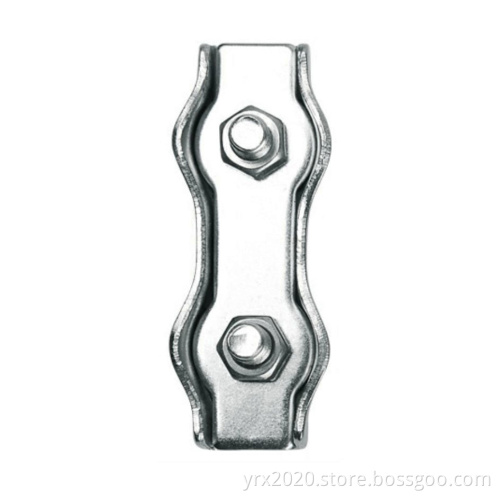

Wire Rope Clip Wire Clamp Dual SUS304 SUS316
The Wire Rope Clip Wire Clamp Dual SUS304 SUS316 belongs to connecting parts. (Click here to show the product Diving Hook Double Ended.) This wire rope clasp can clamp the wire/rope tightly.  It is also named clamping rope, clamp chuck, brake line decorative chuck. (Click here to show the product Quick Link.) The part material can be stainless steel 304, 316, or carbon steel with plating.  The component is durable, tough, secure, strong, rustproof, and reliable. (Click here to show the product Spring Snap Hook.) Please find the different sizes part in the below table. (Click here to show the product Bolt Snap Hook Half Round Base.)


We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

Wire Rope Clip Wire Clamp Double Low Resolution

clamps

Drawing

Wire Rope Clip Wire Clamp Double Drawing

Size Table

Wire Size
(mm / inch)
A
(mm / inch)
B
(mm / inch)
C
(mm / inch)
D
(mm / inch)
E
(mm / inch)
F
(mm / inch)
NW
Net Weight
(kgs / lbs)
2 / 0.0787" 30 / 1.1811" 12 / 0.4724" 7 / 0.2756" 1 / 0.0394" 5 / 0.1969" 15 / 0.5906" 0.004 / 0.009
3 / 0.1181" 34 / 1.3386" 15 / 0.5906" 9 / 0.3543" 1 / 0.0394" 6 / 0.2362" 16 / 0.6299" 0.008 / 0.018
4 / 0.1575" 40 / 1.5748" 19 / 0.7480" 12 / 0.4724" 1.5 / 0.0591" 6 / 0.2362" 20 / 0.7874" 0.011 / 0.024
5 / 0.1969" 50 / 1.9685" 20 / 0.7874" 14 / 0.5512” 1.5 / 0.0591" 8 / 0.3150" 25 / 0.9843" 0.026 / 0.057
6 / 0.2362" 60 / 2.3622" 25 / 0.9843" 17 / 0.6693" 2 / 0.0787" 9.5 / 0.3740” 30 / 1.1811" 0.052 / 0.114
8 / 0.3150" 75 / 2.9528" 31 / 1.2205" 23 / 0.9055" 2 / 0.0787" 10 / 0.3937” 38 / 1.4961" 0.091 / 0.200
10 / 0.3937" 96 / 3.7795" 38 / 1.4961" 27 / 1.0630" 2.5 / 0.0984" 14 / 0.5512” 48 /  1.8898" 0.180 / 0.396
