Stainless Steel Shackle With Safety Screw Pin
  • Stainless Steel Shackle With Safety Screw Pin
  • Stainless Steel Shackle With Safety Screw Pin
Stainless Steel Shackle With Safety Screw Pin
Stainless Steel Shackle With Safety Screw Pin

Stainless Steel Shackle With Safety Screw Pin

Get Latest Price
Min. Order:
50 Piece/Pieces
Min. Order:
50 Piece/Pieces
Transportation:
Ocean, Air
Port:
Yantian China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

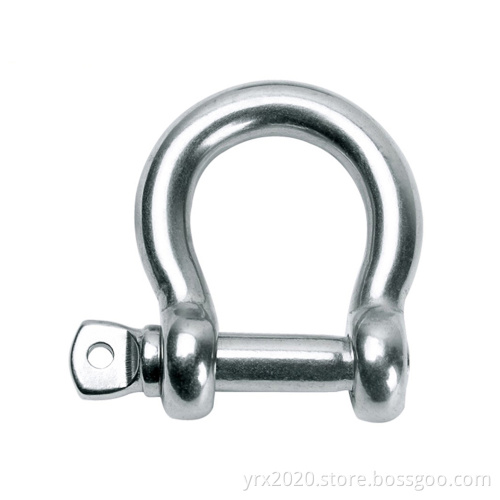

Stainless Steel Shackle With Safety Screw Pin

The Stainless Steel Shackle With Safety Screw Pin belongs to connecting parts.
(Click here to show the product Diving Hook Double Ended.)
The body of the shackle is round. It is with a safety screw pin.
(Click here to show the product Quick Link.)
The material can be AISI 316, AISI 304 stainless steel, or plated carbon steel. Please find the size chart below.
(Click here to show the product Bolt Snap Hook Half Round Base.)
This kind of shackle is widely used for industrial and commercial such as yachts, sailboats, cable railings, shade sails, marines, riggings, etc. We provide whole range size shackles. The parts are strong, tough, reliable, durable, rustproof.
(Click here to show the product Spring Snap Hook.)


We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

shackle screw pin

Drawing

Thread M in drawing is same as dimension C.

shackle relocation xj

Size Table


C (mm / inch) W (mm / inch) F (mm / inch) D (mm / inch) H (mm / inch)

WLL

Work Load Limit

(kgs / lbs)

NW

Net Weight

(kgs / lbs)

 4 / 0.1575"
 8 / 0.3150"
 12 / 0.4724"
 9 / 0.3543"
 16 / 0.6299”
 120 / 260
 0.008 / 0.018
5 / 0.1969"
 10 / 0.3937"
 15 / 0.5906"
 11 / 0.4331"
 17 / 0.6693”
 200 / 440
 0.015 / 0.033
6 / 0.2362"
 12 / 0.4724"
 20 / 0.7874"
 12 / 0.4724"
 23 / 0.9055”
 300 / 660
 0.026 / 0.057
8 / 0.3150"
 16 / 0.6299"
 26 / 1.0236"
 16 / 0.6299"
 32 / 1.2598”
 500 / 1100
 0.062 / 0.136
10 / 0.3937"
 21 / 0.8268"
 30 / 1.1811"
 20 / 0.7874"
 35 / 1.3780”
  800 / 1760
 0.111 / 0.244
12 / 0.4724"
 25 / 0.9843"
 35 / 1.3780"
 24 / 0.9449"
 38 / 1.4961”
 1000 / 2200
 0.189 / 0.416
14 / 0.5512"
 28 / 1.1024”
 43 / 1.6929”
 28 / 1.1024”
 48 / 1.8898”
 1500 / 3300
 0.310 / 0.682
 16 / 0.6299"
 33 / 1.2992”
 48 / 1.8898”
 32 / 1.2598”
 55 / 2.1654”
 2000 / 4400
 0.462 / 1.016
 18 / 0.7087"
 36 / 1.4173"
 52 / 2.0472”
 36 / 1.4173”
 63 / 2.4803”
 2500 / 5500
 0.668 / 1.470
20 / 0.7874"
 42 / 1.6535"
 65 / 2.5591”
 40 / 1.5748”
 75 / 2.9528”
 3000 / 6600
 0.936 / 2.059
22 / 0.8661"
 45 / 1.7717"
 67 / 2.6378”
 44 / 1.7323”
 77 / 3.0315”
 4000 / 8800
 1.180 / 2.596
25 / 0.9843"
 54 / 2.1260"
 78 / 3.0709”
 50 / 1.9685”
 87 / 3.4252”
 5000 / 11000
 1.618 / 3.560
28 / 1.1024"
 56 / 2.2047"
 86 / 3.3858"
 56 / 2.2047”
 98 / 3.8583”
 7000 / 15400
 2.288 / 5.034
32 / 1.2598"
 64 / 2.5197"
 94 / 3.7008”
 64 / 2.5197”
 112 / 4.4094”
 8000 / 17600
 3.333 / 7.333
38 / 1.4961"
 76 / 2.9921"
 100 / 3.9370”
 74 / 2.9134”
 130 / 5.1181”
 12000 / 26400
 5.928 / 13.042
