Wire Harness Clamp Wire Clip Strong
  • Wire Harness Clamp Wire Clip Strong
  • Wire Harness Clamp Wire Clip Strong
  • Wire Harness Clamp Wire Clip Strong
Wire Harness Clamp Wire Clip Strong
Wire Harness Clamp Wire Clip Strong
Wire Harness Clamp Wire Clip Strong

Wire Harness Clamp Wire Clip Strong

Get Latest Price
Min. Order:
50 Piece/Pieces
Min. Order:
50 Piece/Pieces
Transportation:
Ocean, Air
Port:
Yantian China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

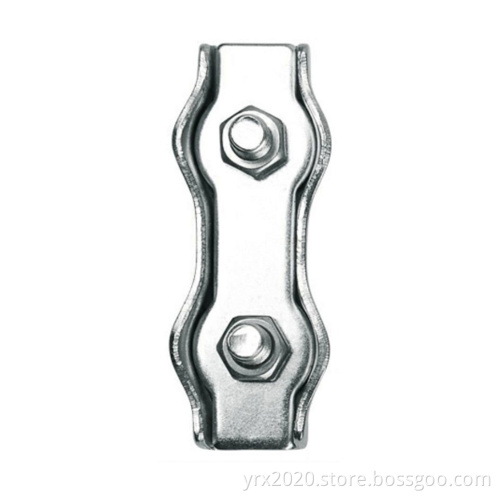

Wire Harness Clamp

The Wire Harness Clamp belongs to connecting parts. (Click here to show the product Quick Link.) This clamp is also named clamping rope, clamp chuck, brake line decorative chuck. It is for locating the wire/rope. (Click here to show the product Bolt Snap Hook Half Round Base.) The part can be made of stainless steel AISI 316, AISI 304, or carbon steel with plating. The AISI 316 stainless steel has the best corrosion resistance among standard stainless steel.  It is durable, strong, rustproof, tough, secure, and reliable. (Click here to show the product Diving Hook Double Ended.) We provide a whole range size of high-quality parts for customer choice. (Click here to show the product Spring Snap Hook.)


We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

wire clamp screw

clamping

Drawing

wire rope clamp size chart

Size Table

Wire Size
(mm / inch)
A
(mm / inch)
B
(mm / inch)

C

(mm / inch)

D

(mm / inch)

E

(mm / inch)

F

(mm / inch)

NW
Net Weight
(kgs / lbs)
2 / 0.0787"
 30 / 1.1811"
 12 / 0.4724"
 7 / 0.2756"
 1 / 0.0394"
 5 / 0.1969"
 15 / 0.5906"
 0.004 / 0.009
3 / 0.1181"
 34 / 1.3386"
 15 / 0.5906"
 9 / 0.3543"
 1 / 0.0394"
 6 / 0.2362"
 16 / 0.6299"
 0.008 / 0.018
4 / 0.1575"
 40 / 1.5748"
 19 / 0.7480"
 12 / 0.4724"
 1.5 / 0.0591"
 6 / 0.2362"
 20 / 0.7874"
 0.008 / 0.018
5 / 0.1969"
 50 / 1.9685"
 20 / 0.7874"
 14 / 0.5512”
 1.5 / 0.0591"
 8 / 0.3150"
 25 / 0.9843"
 0.026 / 0.057
6 / 0.2362"
 60 / 2.3622"
 25 / 0.9843"
 17 / 0.6693"
 2 / 0.0787"
 9.5 / 0.3740”
 30 / 1.1811"
 0.052 / 0.114
8 / 0.3150"
 75 / 2.9528"
 31 / 1.2205"
 23 / 0.9055"
 2 / 0.0787"
 10 / 0.3937"
 38 / 1.4961"
 0.091 / 0.200
10 / 0.3937"
 96 / 3.7795"
 38 / 1.4961"
 27 / 1.0630"
 2.5 / 0.0984"
 14 / 0.5512”
 48 /  1.8898"
 0.180 / 0.396
