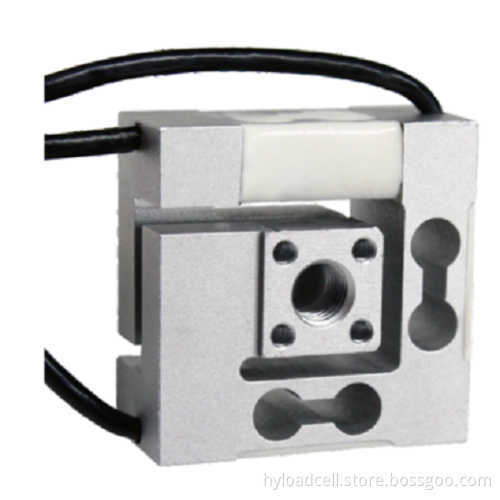

The NH6T3  three-axis load cell was designed specifically for measuring tensile and compression and torque forces. It is widely used in robotic and industrial automation area. The load cells are made of alloyed stainless steel and are characterized by high accuracy and linearity. The load cell sensor  gives extremely accurate reproducible results, over a long term even in harsh industrial environments.The load cell is laser-welded and meets the requirements of protection class IP66.

Features:

Range: 5-50kg

• Suitable for various industrial force measuring occasions, such as precision control, polishing, grinding and other industries of Robotic arm

• Structure: aluminum alloy structure, multi-directional force measurement, surface Anodizing

Appearance: waterproof and sealed

Wiring method:

Technical parameter table

PARAMETERS Sensor Range KG   Fx/Fy/Fz:5-50kg Rated load Comprehensive error FS ±1% Comprehensive error sensitivity mv/v 1.0±0.2 Rated output Zero point output FS ±1% Zero balance creep %FS/30min ±0.1 Creep Zero temperature effect %FS/10℃ ±0.1 Temp.effect on zero Sensitivity temperature influence %FS/10℃ ±0.1 Temp.effect on span Nonlinear %FS ±1 Non-Linearity Hysteresis %FS ±0.5 Hysteresis Repeatability %FS ±0.5 Repeatability Input impedance Ω 700±50 Input resistance Output impedance Ω 700±5 output resistance crosstalk %FS 2% Crosstalk Temperature compensation range ℃ -10-40 Compensated temp.range Operating temperature range ℃ -35-65 Use temp.range Excitation voltage V 5-12（DC） Excitation voltage Safe overload range % 150 Safe overload Protection level IP65 Defend grade wire m 3米Φ3屏蔽线 Cable

Overall dimensions:
