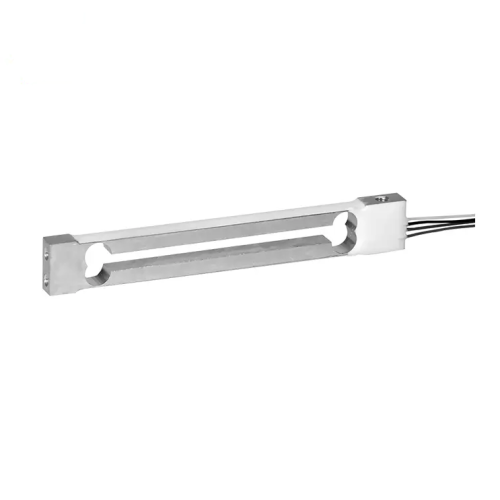

Miniature Load Cell With Amplifier Analog Output 50g

$10.00

1-99 Piece/Pieces
$6.00

100-999 Piece/Pieces
$5.00

≥1000 Piece/Pieces

Transportation:: Ocean, Land, Air, express

Port:: Shenzhen China, shanghai, ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China
Productivity:	100000 Piece per Month
Supply Ability:	100000 Piece per Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	CFR,FOB,EXW
Certificate:	ISO9001. ISO14001
HS Code:	9026809000
Transportation:	Ocean,Land,Air,express
Port:	Shenzhen China,shanghai,ningbo

Product Description

Navigate the world of meticulous weighing with our Miniature Load Cell with Amplifier (50g). This sensor is perfect for those who need to measure the minuscule yet crucial changes in weight, fitting a range of specialized tasks from lab work to precision engineering.

Miniature Measurement Marvel:

With its high sensitivity, capturing weight variations as minor as 50 grams is a cinch. It's an example of a High Accuracy Load Cell where precision is non-negotiable.

Thanks to the integrated amplifier, this device simplifies your setup by allowing direct system integration—a no-hassle, high-tech solution.

Adaptable and Sleek:

Its diminutive size makes it an excellent choice for limited spaces, easily making it part of any compact system or Platform Load Cells where every square inch counts.

Whether it's needed for intricate scientific experiments or meticulous quality checks in product development, this versatile sensor is up to the task.

Wiring method:

Trustworthy and Tailor-Made:

Constructed from robust materials, this sensor is designed for durability, standing up to rigorous use where Load Cells play a pivotal role.

Our calibration service fine-tunes this Single Point Load Cell to your specific requirements, ensuring your projects are supported by precise data.

Step Into the World of Precision Weighing:

Dedicated to detailed and dependable measurements, our Miniature Load Cell with Amplifier (50g) is a gateway to a new level of precision in low-force measuring applications. Reach out to discover how this advanced sensor can enhance your precision measurement needs, whether you’re working with Single Point Load Cells or need the broader capabilities of Platform Load Cells.

Micro sensor is mainly used for pocket scale, small machine, small structure, aluminum alloy mechanism. It is a very practical micro sensor with a measuring range of 20g to 200g

Features:

Range: 20/50G

Suitable for electronic weighing equipment such as electronic scales and counting scales

Material: Aluminum alloy material, colorless anodizing treatment

Appearance: Silicone rubber seal, colorless anodizing treatment of elastomer

Recommended platform size: 100 * 100mm

Technical parameter table

PARAMETERS
Sensor Range	G	20/50	Rated load
sensitivity	mv/v	0.5±0.15	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.05	Creep
Zero temperature effect	%FS/10℃	±0.5	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.5	Temp.effect on span
Input impedance	Ω	1150±50	Input resistance
Output impedance	Ω	1000±10	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
wire	m	OD0.8*80mm排线	Cable
