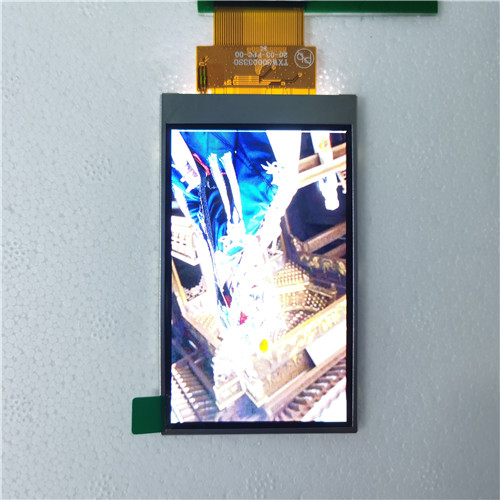

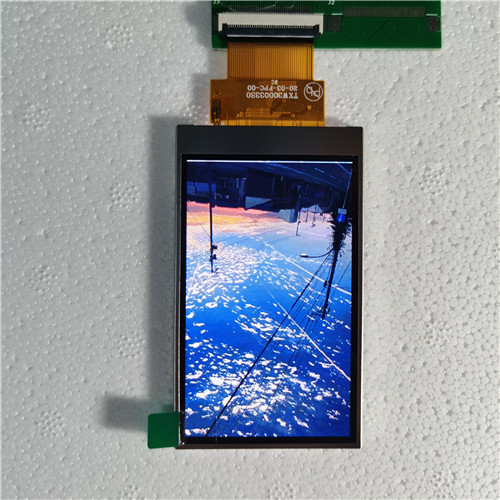

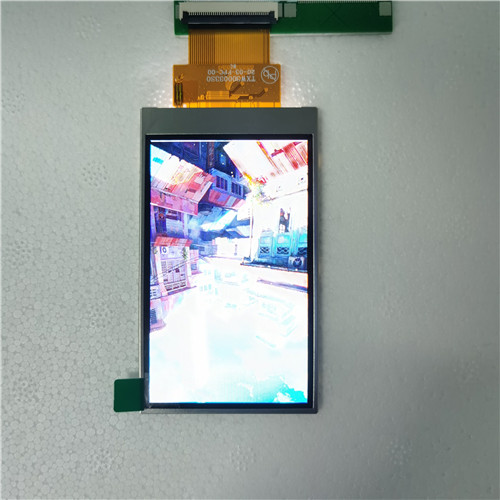

3.0 Inch Colorful TFT LCD Screen Display

3.0 Inch Colorful TFT LCD Screen Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

All the pixels on a TFT screen are configured in a row-and-column format, and each pixel is attached to an amorphous silicon transistor that rests directly on the glass panel. This allows each pixel to be given a charge and for the charge to be kept even when the screen is refreshed to produce a new image.
With this type of setup, the state of a particular pixel is being actively maintained even while other pixels are being used. This is why TFT LCDs are considered active matrix displays (as opposed to a passive matrix displays).

ITEM	Sandard value	Unit
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	240*3RGB(H)X400(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.162(W) × 0.162(H)	mm

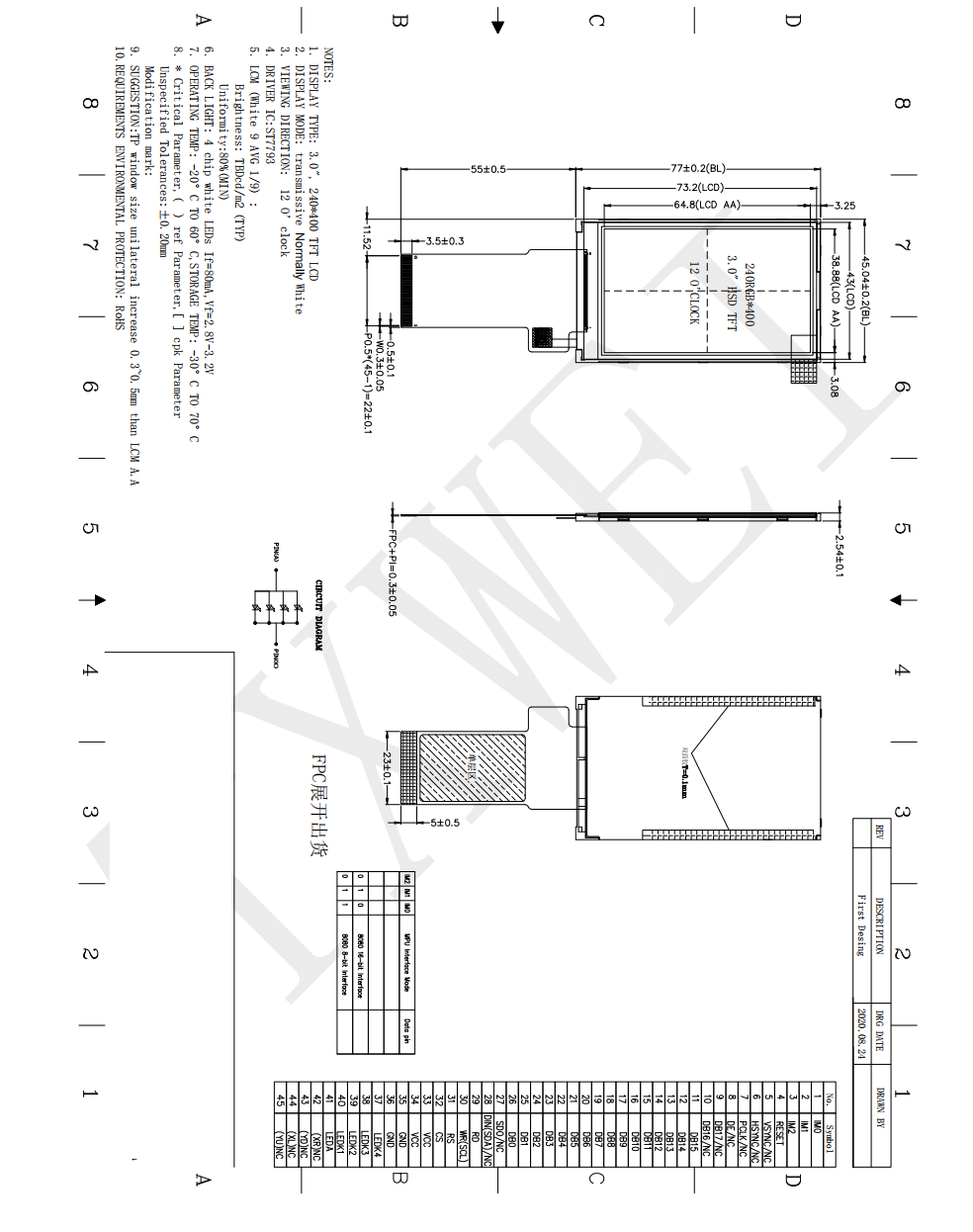

Active area	38.88(W) × 64.80(H)	mm
Viewing direction	12 O’CLOCK	-
TFT Driver IC	ST7793
TFT interface	8/16bit MCU Interface	-
Module Size(WHT)	45.04W) ×77.00 (H) ×2.54(D)	mm
Approx. Weight	TBD	g
Touch structure
Touch Driver IC		-
Touch Interface
