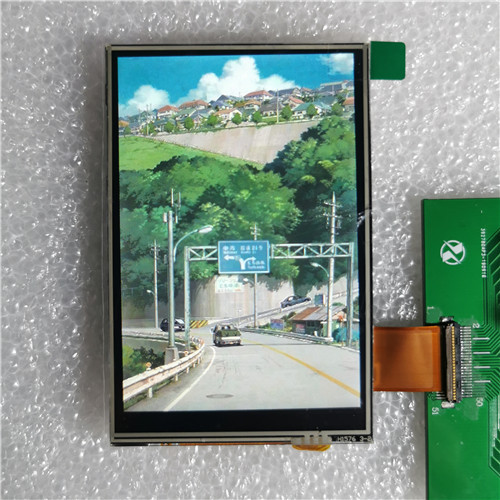

3.5 Inch IPS Display Screen

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Just like LCD screen which consist of segments that can change independently their transparency controlled with electrical voltage in each segment of liquid crystals, TFT-LCD Display works in the same basic principle. A further development is active-matrix display which is employed in TFT-LCD Display.
TFT-LCD Display contains transistors manufactured from silicon which are formed to a crystalline silicon wafer like structures, they are processed from a mechanically thin film cut section of silicon deposited on any inert mold-able transparent layer like glass. The silicon layer for TFT-LCD is deposited using more complex methods. Transistors take up a small fraction of TCT-LCD display to allow light to pass through. Material like Polycrystalline silicon is used in high quality TFT-LCD Displays.

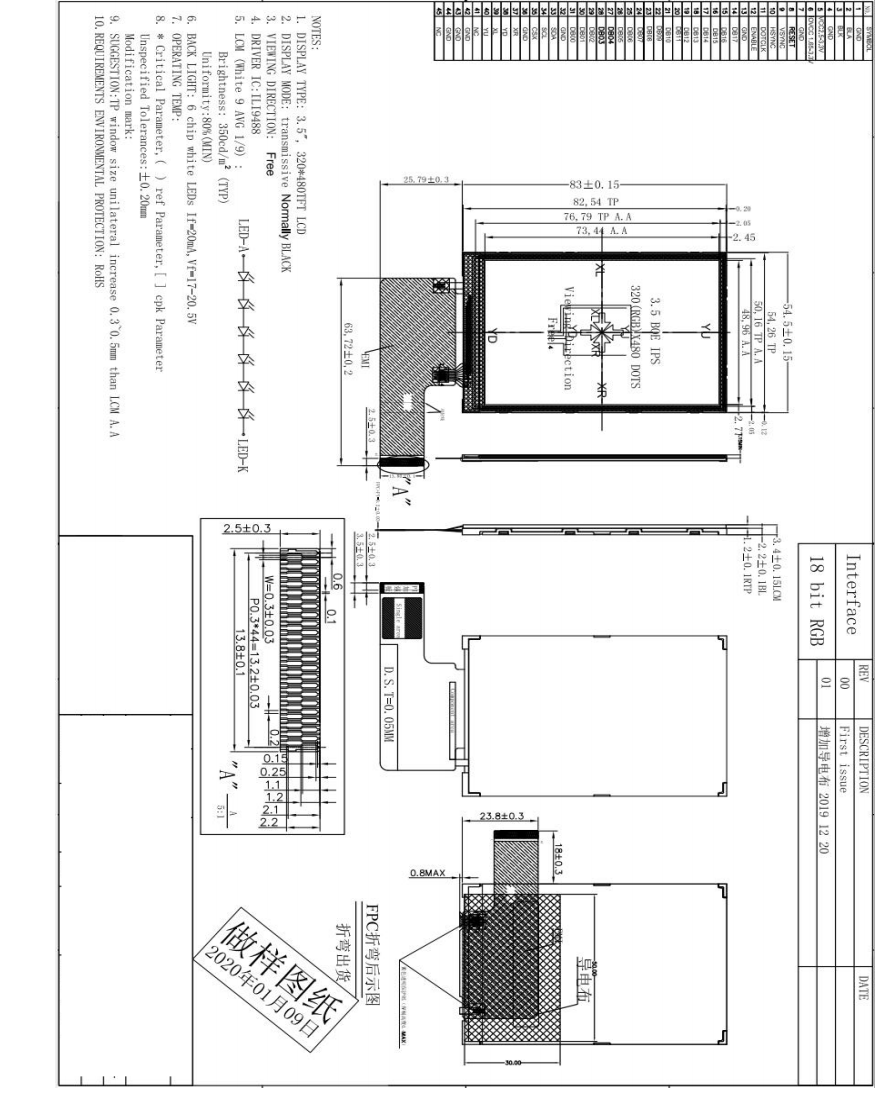

ITEM	Sandard value	Unit
LCD Type	Normally Black	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X480(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.153(W) × 0.153(H)	mm
Active area	48.96(W) × 73.44(H)	mm
Viewing direction	ALL O’CLOCK	-
TFT Driver IC	ILI9488
TFT interface	SPI+ RGB Interface	-
Module Size(WHT)	54.5(W) ×83(H) ×3.4(D)	mm
Approx. Weight	TBD	g
Touch structure
Touch Driver IC		-
Touch Interface
