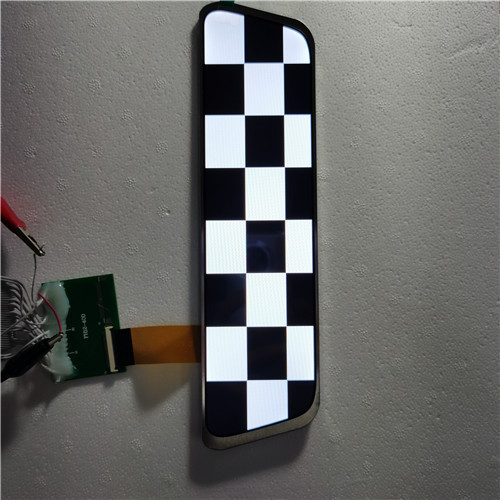

9.35 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT displays are found in many applications these days, from mobile devices, appliance, medical devices, instrumentation, aircraft and certainly computer display devices as well as TV’s. The addition of the thin film transistor in LCD design vastly improved the use of LCD’s in all market areas. Liquid crystal display (LCD), electronic display device that operates by applying a varying electric voltage to a layer of liquid crystal, thereby inducing changes in its optical properties. LCDs are commonly used for portable electronic games, as viewfinders for digital cameras and camcorders, in video projection systems, for electronic billboards, as monitors for computers, and in flat-panel televisionSize: 9.35
Model: 935002B0
Resolution: 320*1280
Viewing angle: IPS
Color: 16.7M
Features: high brightness, full viewing angle, bar screen, special-shaped screen
Application areas: full LCD dashboard for motorcycles, full LCD dashboard for electric vehicles, smart rearview mirrors, outdoor vision, medical equipment, automotive electronics, advertising players, etc.

ITEM	Sandard value	Unit
Model Number	TXW935002B0
size	9.35	Inch
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X1280(V)	Dots
Pixel arrangement	RGB stripe	--
Active area	58.08(H) *232.7(V)	mm
LCM Mechanical OutlineSize(WHT)	64.48246.154.5	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	ICN9707	-
LCM interface	MIPI Interface	-
Lcm pin n count	40
Backlight leds	24	pcs
Backlight current	180-240	ma
Backligh voltage	18-19	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	900-1100	Cd/㎡

、、
