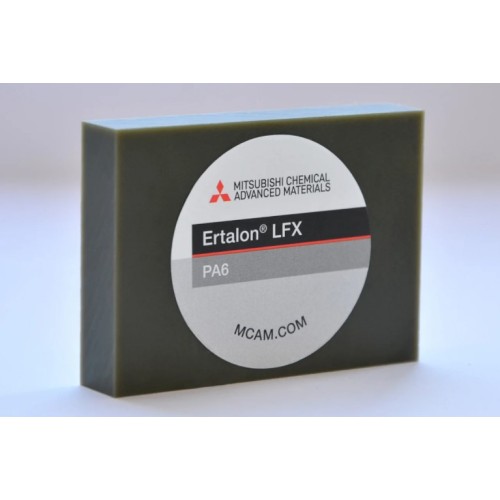

Nylatron® Ertalon® LFX Self-lubricating nylon 6

Nylatron® Ertalon® LFX Self-lubricating nylon 6

$2.90

1-99 Kilogram
$2.80

100-999 Kilogram
$2.70

≥1000 Kilogram

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen, Guangzhou, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,DDU
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen,Guangzhou,Hongkong

Product Description

Nylatron® / Ertalon® LFX Polyamide PA6 internally lubricated shapes were specifically formulated for applications involving unlubricated, highly loaded, and slowly moving parts. This grade in particular displays high mechanical strength, stiffness, hardness, and toughness, great sliding properties, high mechanical damping capabilities, and exceptional electrical insulating properties.

Ertalon® LFX PA6 (7) Ertalon® LFX PA6 (5)

Pa6G Sheet Rod Material Properties

Excellent wear resistance and easy machining
Low coefficient of friction
Higher values of PV (pressure / velocity)
Good resistance to high energy radiations (Gamma and X Rays)
High mechanical damping capacity
Good sliding and thermal insulation properties

Nylatron® / Ertalon® LFX PA6 stock shapes encompass a range of standard sizes in the following geometries: Rod, Extruded Profile, Plate, Tubular bar Nylon 6 Nylon 66

Quadrant EPP brand their Nylon products ERTALON^®

ERTALON^® LFX - Colour Green

ERTALON^® LFX is an internally lubricated cast nylon 6, which is self-lubricating in the real meaning of the word. ERTALON^® LFX, specifically developed for unlubricated, highly loaded and slow moving parts applications, yields a considerable enlargement of application opportunities compared to standard cast nylons. Comparative bearing tests on steel mating surfaces have shown that ERTALON^® LFX outlasts conventional cast nylon on wear resistance by a factor which can be as high as 10 and the coefficient of friction is reduced by 50% or more which considerably increases the pressure-velocity capabilities.

In generally for bearings / bearing surfaces ERTALON^® LFX is more suited to high load / low speed applications, NYLATRON^® GSM (cast Nylon 6 + MOS₂) is a good "all rounder", while NYLATRON^® NSM is suitable for applications requiring higher speed but lower loads.

Quadrant EPP brand their Nylon products ERTALON^®

MC PA6G Application

- Sliding rules

- Linear motion bushes

- Slip parts without any lubrication and small speeds

- Supports for ore tanks

ERTALON® LFX Ertalon® LFX PA6 (6)(1)

ERTALON LFX Green PA6G

ERTALON LFX is an internally lubricated cast nylon 6 which is self-lubricating in the real meaning of the word. ERTALON LFX, specifically developed for unlubricated moving parts applications, yields a considerable enlargement of the application possibilities of nylons.

This is because of its reduced coefficient of friction (-50%) and improved wear resistance (up to x 10).

ERTALON® is used for a wide range of industrial components both for Original Equipment Manufacturing and maintenance.

Nylatron® / Ertalon® LFX Polyamide PA6 APPLICATIONS

sleeve and slide bearings, wear pads, support and guide wheels, conveyor rolls, tension rollers, sleeves for wheels and rollers, pulley and pulley linings, cams, buffer blocks, hammer heads, scrapers, gear wheels, sprockets, seal-rings, feed screws, starwheels, cutting and chopping boards, insulators, etc.

Ertalon Lfx
