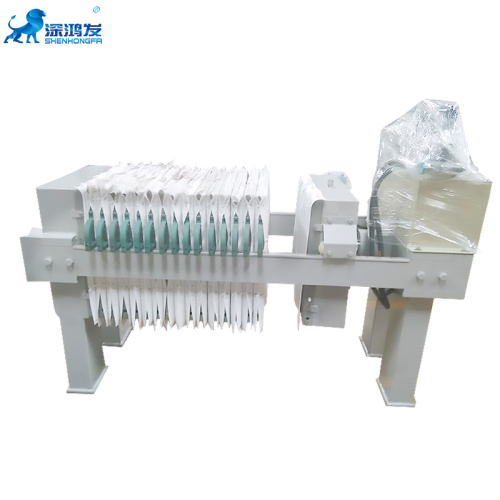

Sludge Dewatering Machine Plate & Frame Filter Press

Water Saving Industrial Sludge Dewatering Filter Press

Introduction of Plate and Frame Filter Press:

Filter press is used for solid and liquid separation of environmental protection equipment. Compared with other solid-liquid separation equipment, the filter filter has higher solid content and better separation effect. The basic principle of solid-liquid separation is: the mixed liquid flows through the filtration medium (press cloth), the ancient body stays on the press cloth, and gradually accumulates on the press cloth to form filter mud cake. The filtrate part penetrates the filter cloth and becomes a clear liquid without solids.

Main components of filter press:

> Frame:            The steel frame acts as a clamping device for the filter plates.

> Filter Plates:   A filter cake forms in the chambers between filter plates.

> Filter Cloth:     A cloth filter that is attached to both sides of a filter plate. Solids build up on cloth to form a filter cake, separating liquids from solids.

Types of Filter Press according to:

> Closing mode:  manual, gear drive, hydraulic;

> Filtrate flow:   open flow, close flow, cake washing, non-cake washing, center feeding, corner feeding,etc..

> Filter plate structure:  recessed plate, plate &frame, diaphragm squeeze (membrane) plate;

> Filter plate material:  PP, rubber, cast iron, stainless steel;

> Filter Plate size:  320, 450, 630, 800,1000, 1250, 1500, 2000

Product Description

1) The plate-frame sludge filter press is an intermittent solid-liquid separation device.
2) It consists of a filter plate and a filter frame arranged to form a filter room. Under the pressure of the feed pump, the feed liquid is sent to each filter room through filtration.
3) Medium, separating solids from liquids. It has the advantages of good separation effect, wide application scope, simple operation, and low investment.
4) Especially for the separation of viscous material, it has unparalleled superiority

FAQ:
1. How to buy your interested products?
You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project
2. How to pay?
L/C or T/T are acceptable.Usually, 50% payment in advance, 50% payment before delivery.
3. What is the delivery time?
It depends on order quantities. Generally speaking, the delivery time will be within 1 months.
4. How to pack the products?
We use standard export package.If you have special package requirements, we will pack as you required, but the fees will be paid by customers.
5. How to install after the equipment arriving destination?
We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
6. How long is the validity?
The validity is 12 months after installation
