Hydrogen energy pressure sensor

$66.00

100-999 Piece/Pieces
$60.00

1000-4999 Piece/Pieces
$57.00

5000-9999 Piece/Pieces
$55.00

≥10000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: GuangZhou, JiangMen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000pcs/month
Supply Ability:	100000pieces/Month
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Transportation:	Ocean,Land,Air,Express,Others
Port:	GuangZhou,JiangMen,ShenZhen

Product Description

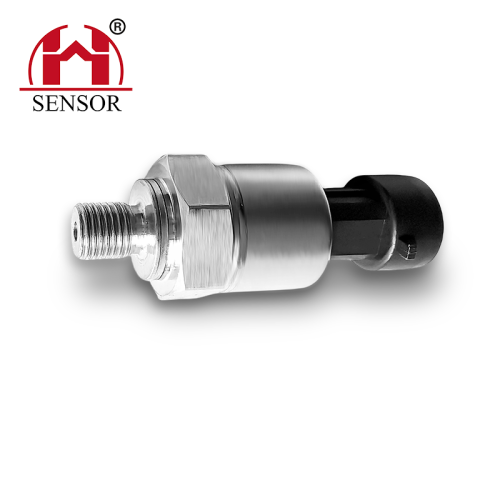

Hydrogen energy pressure sensor

The HM5222 series hydrogen energy pressure sensor is made of high-quality sensitive sensing elements, equipped with dedicated digital compensation circuits, and packaged with stainless steel casing structure.

The HM5222 series hydrogen energy pressure sensor has excellent temperature compensation technology and can be stably used in a wide temperature range of environments. It is specifically suitable for measuring hydrogen pressure in hydrogen refueling stations and hydrogen energy vehicle onboard environments, with excellent stability and reliability.

Function and Features

◆ Accurate pressure measurement,intrinsic safety explosion-proof, with EMC protection.

◆ Anti vibration, impact resistant, highly integrated, with good long-term stability.

◆ Adopting dedicated amplification circuits and excellent temperature compensation technology.

◆ Diversified threaded interfaces facilitate installation under various working conditions.

◆ Multiple range specifications selection.

◆ Sturdy and compact structure, easy to install in small spaces.

◆ Customizable according to customer requirements.

Product parameters

Working environment
	Minimum value	Maximum value	Notes
Medium temperature	-40℃	120℃	The measurement medium cannot be frozen
Storage temperature	-40℃	120℃
Electrical characteristics
Powered by	5±0.25VDC (can be customized)	Working current	＜10mA
Output voltage (ratio)	0.5-4.5VDC (can be customized)	Overvoltage protection	16VDC
Load Resistance	＞2KΩ	Reverse voltage	-14VDC
Working characteristics
Measuring range	0～100kPa～100MPa(customizable)	Overload pressure	150%FS
Static accuracy	±1.5%@FS (can be customized)	Comprehensive error	±3.0%FS (can be customized)
Mechanical behavior
Protection level	IP65	Pressure port	3/8-24UNF-2A (can be customized)

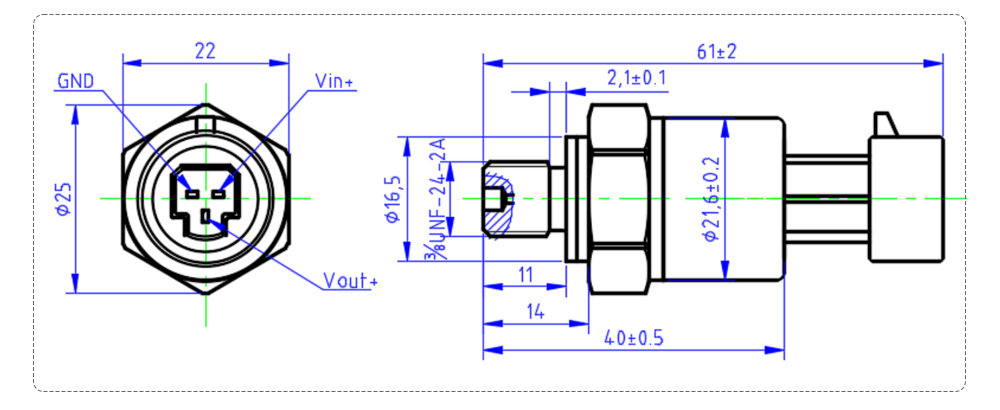

Boundary dimensions and pin definitions

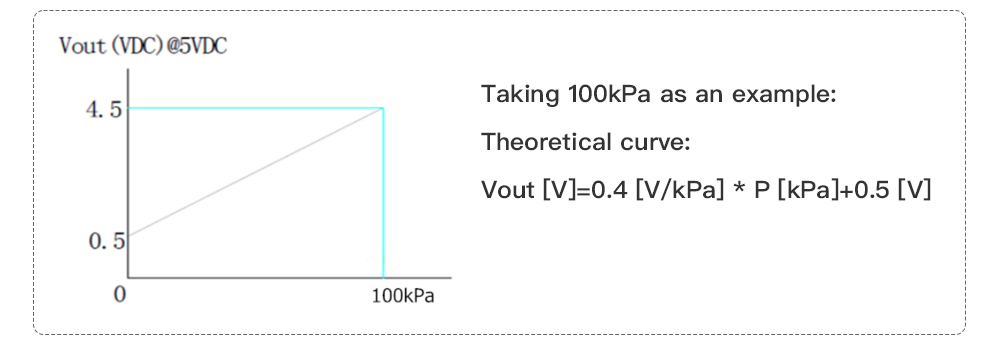

Output characteristic
5222_07

Matters needing attention

◆ During installation, avoid scratching the O-ring seal;

◆ The power supply needs to be filtered to prevent damage to this product caused by instantaneous high currents;

◆ If there are obvious surges in the product's operating environment, it is necessary to add protective circuits such as TVS tubes;

◆ Avoid falling, hitting, and puncturing hard objects;

◆ Avoid product exposure to water and strictly prohibit water immersion;

◆ It is strictly prohibited to disassemble the casing to avoid product damage.

Disclaimer

◆ Use of media beyond regulations;

◆ Exceeding the specified power supply voltage for use;

◆ Use beyond the specified temperature range;

◆ Use beyond the specified pressure range;

◆ Severe deformation or damage to the isolation membrane caused by improper operation;

◆ Force majeure, such as product damage caused by lightning strikes, etc;

◆ Other product damage caused by failure to use in accordance with the requirements of this specification.

Note: The accuracy of a product refers to the error rate between the theoretical output value (calculated according to the output formula) and the actual measured value.

That is, accuracy=(measured value - theoretical value)/net output

Net output: 4.5-0.5=4
