Precision CNC turning part

First, the type of CNC turning parts

The main movement of CNC lathe turning is the rotary movement of the spindle, the type of processing is mainly revolving around body parts. Rotary body parts are divided into three categories: axle sleeve, wheel, and complex contour shape. The difference between the sleeve and disc parts lies in the length-diameter ratio. Generally, the parts with a length-diameter ratio greater than 1 are called sleeve parts. Parts with an aspect ratio less than 1 are called wheel parts

1, CNC lathe processing of the main object

CNC lathe machining precision is high, can make a straight line and arc interpolation, some advanced CNC devices have some non-circular curve interpolation function and in the process of automatic transmission and other characteristics, for the characteristics of CNC lathe, the following parts are most suitable for CNC turning processing

2, high precision rotary parts

CNC lathe can process parts that require higher precision of bus straightness, roundness, and cylindricity. For arcs and other curves, the shape produced is very close to the geometric shape required in the drawing. On some occasions, a car can be substituted for a mill

3. Rotary parts with particularly complex contour shapes

Because CNC lathes have linear and circular interpolation functions, some advanced CNC devices and some non-circular curve interpolation functions, so you can turn by any straight line and plane curve composition of the shape of the complex rotating body parts, and difficult to control the size of the parts such as shell parts with the closed inner forming surface. This is an incomparable advantage of traditional lathes

4, surface roughness requirements of rotary parts

Some CNC lathes have the function of constant linear speed cutting, which can process parts with small and uniform surface roughness. When turning taper and end face on a common lathe, the surface roughness after turning is not consistent because of constant rotation speed. Using the constant linear speed cutting function of the CNC lathe, the optimal linear speed can be selected to cut the cone and end face, so that the machined surface roughness value is small and consistent. Numerical control car


Cutting is also suitable for turning parts with different surface roughness requirements. Roughness value requires large parts to use large feed, and small parts to use small feed.

5. Rotary parts with special threads

CNC lathe can not only turn any equal lead straight, conical thread and end thread, and can increase the load, reduce lead and requirements of equal lead and variable lead smooth transition between the thread, but also can turn high precision modular spiral parts (such as cylindrical, circular worm) and end (disc) spiral parts. CNC lathes can be equipped with precision thread cutting function, the use of cemented carbide forming tools and a high number of revolutions, so the turning out of the thread precision is high, the surface roughness is small


Two, turning process characteristics


Turning processing is mainly used to process a variety of rotary surfaces, that is, the workpiece rotation as the main movement, turning tool for feed movement. Common turning methods are turning inside and outside the circle, turning plane, and turning cone turning thread. According to the choice of turning tool Angle and different cutting amounts, turning can be divided into rough turning, semi-finishing turning, and finishing turning stage. Among them:


The tolerance grade of the coarse car is IT12~IT11, and the surface roughness Ra is 12.5~25um. The dimension tolerance grade of the semi-finishing car is IT10~1T9, and the surface roughness Ra is 3.26.3um


The dimensional tolerance grade of a fine car is IT8~IT7, and the surface roughness Ra is 0.8~1.6um(non-ferrous metal Ra can reach 0.4~0.8um)

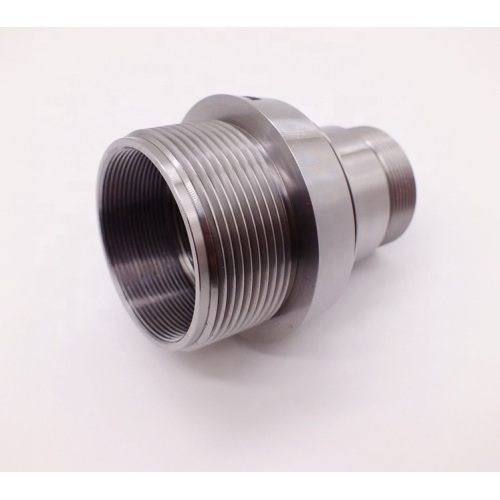

Product pictures：
