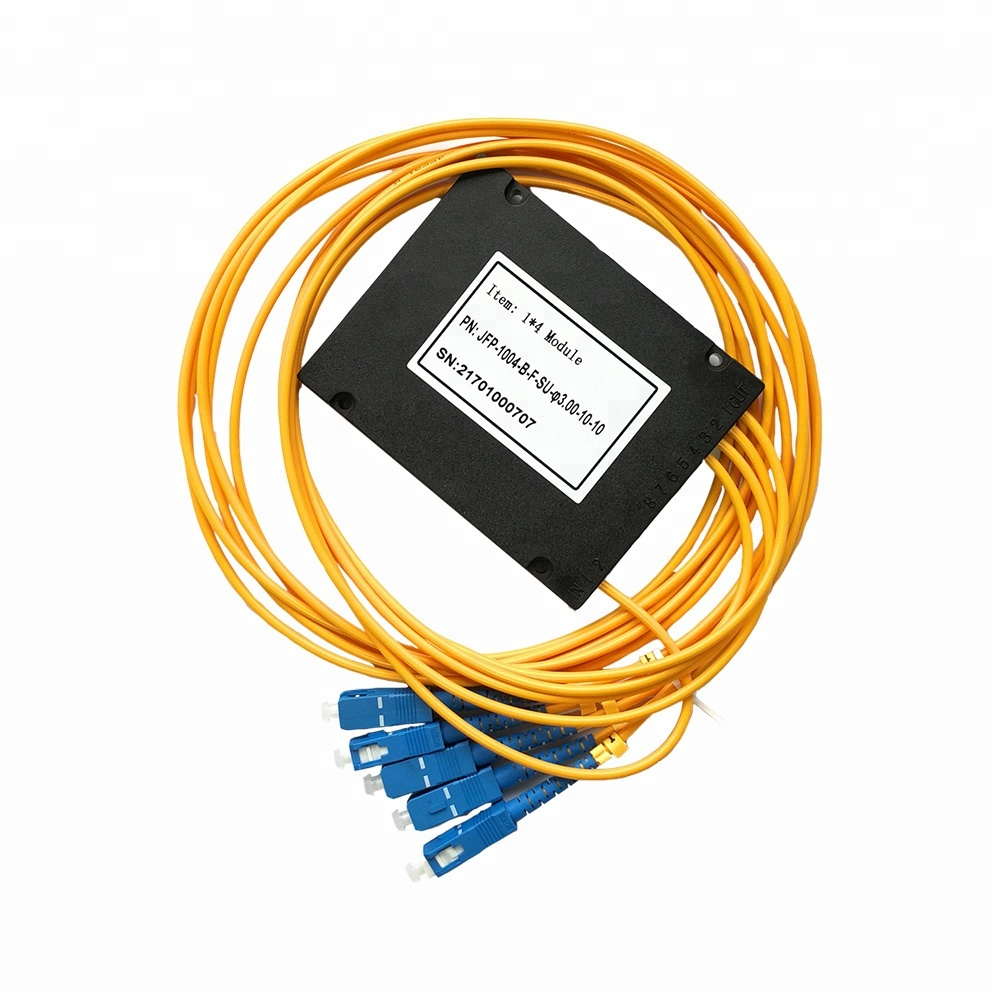

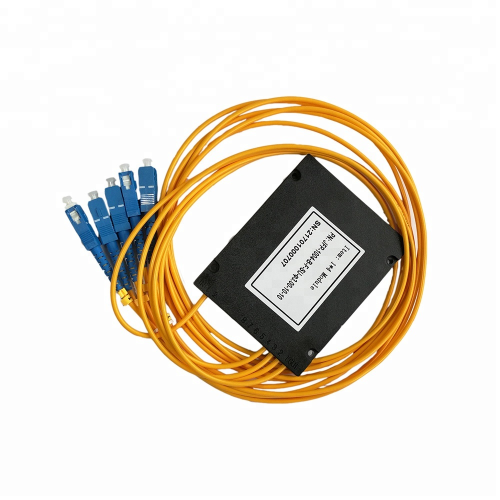

ABS BOX Type PLC Splitter 1X4

What is Plc Splitter?

PLC Planar Waveguide Optical Splitter (PLC Splitter) is an integrated waveguide optical power distribution device based on a quartz substrate. Like coaxial cable transmission systems, optical network systems also need to couple, branch, and distribute optical signals. Need Optical Splitter to realize.

ABS BOX PLC Product description:

The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate.It has the characteristics of small volume,wide operating wavelength range,high reliability ,good uniformity of spectrophotometer and so on.For Passive Optical Network(EPON,BPON,GPON,etc)to connect the central office and terminal equipment and to achieve optical signal shunt.The 1xN and 2xN splitters evenly divided the optical signal into multiple outlets evenly from a single or dual inlet,or vice versa,to import multiple optical signals into a single or two root fiber.

Features.

1)Good uniformity and low insertion loss  2)Low polarization dependent loss
3)Excellent environmental stability            4)Excellent mechanical
5)Compact design,suitable for installation in optical equipment
6)Wide operating temperature:-40~85 ℃    7)High reliability and stability

Applificaiton.

1)FTTX Systems 2)PON Networks 3)CATV Links 4)Optical Signal Distribution 5)Local Areal Networks (LAN) 6)Optic Fiber communication Systems

Specification:

Operating Wavelength (nm):1260~1650;Insertion Loss (dB) Max.(P/A):3.8/4.1;Uniformity (dB) Max:<0.6;PDL(dB)Max:<0.2;

Rectivity (dB) Min *:55;Return Loss (dB) Min *:55(50);Operating Temperature (°C):-40~ +85
