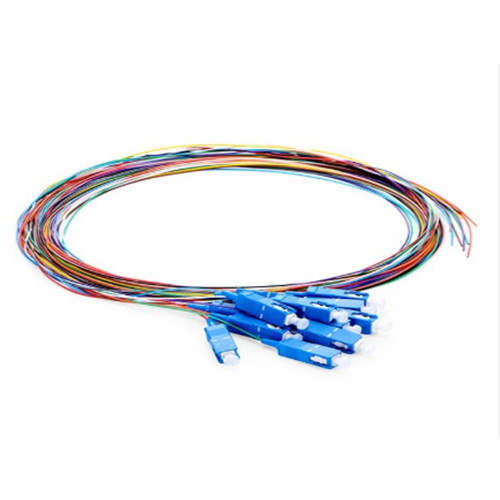

Fiber Cable SC color-coded Pigtail

Fiber Optic Cable Sc Color-coded Pigtail

At present, the commonly used pigtail interface types for fiber optic equipment on the market generally include: FC, SC, LC, and ST.FC connectors are also called round threaded connectors.They are metal connectors and are generally used on the ODF side. Metal connectors can be plugged in more times than plastic. SC connector is also called the card-connected square connector.It is a standard square connector. It uses engineering plastics and has the advantages of high temperature resistance and not easy to oxidize.The optical interface on the transmission equipment side generally uses an SC connector.LC connector is similar in shape to the SC connector,but smaller than the SC connector. ST connector is also called snap-on round connector.For 10Base-F connection,the connector is usually ST type.

Sc Color-coded Pigtail Product Overview:

Fiber optic pigtails provide a fast way to make Communication Devices in the field.They are designed,manufactured and tested according to protocol and performance dictated by the industrial standards,which will meet your most stringent and performance specifications.

Fiber Connectivity Pigtail characteristics:

>100% factory tested assemblies with traceable test data,low environmental sensitivity

>Low insertion loss,high return loss,stricter than industry standards.

>Good exchange ability and good durability,stable optical properties.

>Standard connector,Various connector option:LC,SC,FC,ST,E2000,MU,DIN etc.

>Compliant with IEC61754,GR-326,TIA/EIA 568 standard.

Range of application:

CATV.LANs,WANs;Telecommunication networks;Active device ternimation;Data center system networksVideo Onu and military active device termination
