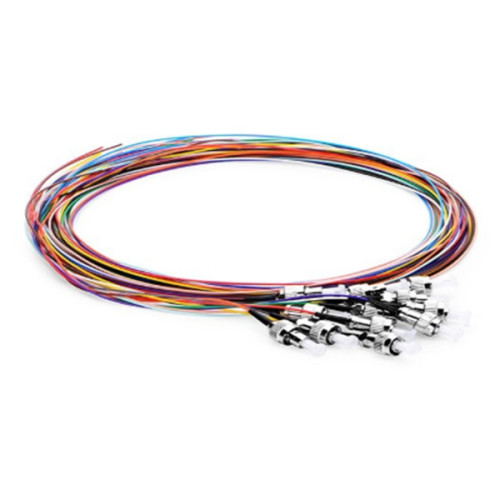

FC Color-coded Pigtail Cable

Fiber Optic Cable Fc Color-coded Pigtail

The function of the pigtail is mainly to connect the connectors at both ends of the optical fiber. One end of the pigtail is fusion spliced with the optical fiber connector, and the other end is connected to the optical fiber transceiver or optical fiber module through a special connector (FC, SC, LC, ST) to form optical data transmission. path. Among them, FC and FC connectors are generally used in communication transmission equipment,ST connectors are generally first transferred with a coupler, and then connected to the optical fiber transceiver or optical fiber module.

Fc Color-coded Pigtail Product Overview:

Fiber optic pigtails provide a fast way to make Communication Devices in the field.They are designed,manufactured and tested according to protocol and performance dictated by the industrial standards,which will meet your most stringent and performance specifications.

Fiber Connectivity Pigtail characteristics:

>100% factory tested assemblies with traceable test data,low environmental sensitivity

>Low insertion loss,high return loss,stricter than industry standards.

>Good exchange ability and good durability,stable optical properties.

>Standard connector,Various connector option:LC,SC,FC,ST,E2000,MU,DIN etc.

>Compliant with IEC61754,GR-326,TIA/EIA 568 standard.

Range of application:

CATV.LANs,WANs

Telecommunication networks

Active device ternimation

Data center system networks

Video Onu and military active device termination
