Product Description

200G DWDM 3Ports DWDM Devices

What is DWDM?

DWDM (Dense Wavelength Division Multiplexing) is the ability to combine a group of optical wavelengths with a single optical fiber for transmission. This is a laser technology used to increase bandwidth on existing fiber optic backbone networks. More precisely, this technology multiplexes the tight spectral spacing of a single fiber carrier in a specified optical fiber in order to take advantage of the achievable transmission performance (for example, to minimize dispersion or attenuation). In this way, under a given information transmission capacity, the total number of optical fibers required can be reduced.

Dense WDM, also named dense WDM splitter, as well as coarse WDM splitter, is one of the commonly seen WDM device. DWDM often applied with network device such as wireless device, olt device, etc.

Multiplexer For WDM Network Systems Y

Product Information:

1x2 200G DWDM device is based on the thin film filter technology, which can let two or more different optical wavelength transmit respective signal in one optical fiber, or separate the multiplex signals, the central wavelength space is 200GHz.

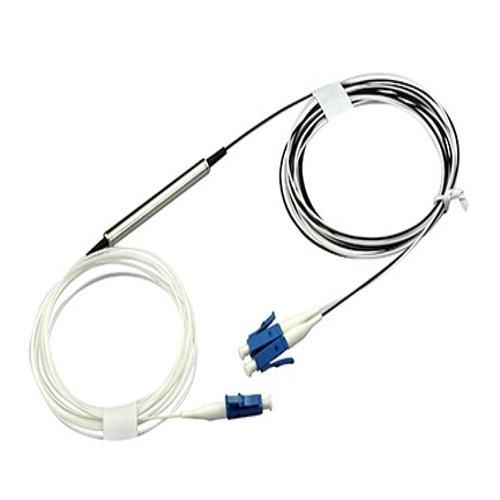

3 Ports 200G DWDM 1

Product Features:

High Channel Isolation, low Insertion Loss
Epoxy-free on Optical Path
High Stability and reliability
Material meet RoHS
Meet GR 1209,GR 1221 requirement

Multiplexer For Wdm Network Systems Y

Product Specification:

Working Wavelength Range (nm): 1500~1700
Channel Wavelength (nm): ITU Standard
Passband Width (nm): ±0.25
Channel Spacing (nm): 200G
Pass Channel Insertion Loss (dB): Maximum 0.8
Reflection Channel Loss (dB): Maximum 0.4
Ripple (dB): Maximum 0.3
Adjacent Pass Channel Isolation (dB): Minimum 30
Non-adjacent Pass Channel Isolation (dB): Minimum 45
Isolation of Pass Channel @ Reflection Port(dB): Minimum 15
Directivity (dB): Minimum 45
Return Loss (dB: Minimum) 45
Polarization Dependent Loss (dB): Maximum 0.1
Polarization Mode Dispersion (ps): Maximum 0.1
Maximum Optical Power (mW): 300
Operating Temperature Range (℃): -5~+70
Storage Temperature Range (℃): -40~85
Optical fiber type: Corning SMF 28e+ or equal (customized)
Optical fiber length (m): ≥1.0 (customized)
Package dimension (mm): All glass for bare fiber type Ø4.0x26 / Steel tube for loose tube type Ø5.5x39
