High Performance Dual Band 2.5G&5.8G Wifi Epon Onu

Dual band EPON 1GE with WIFI ONU, this type of product has the characteristics of high reliability and service quality assurance, easy management, flexible expansion and networking. This is lightweight, more functional, affordable, network and acceptance sensitivity can reach about -27, as well as can be customized in the case customization and also packaging above, can be customized design.

2.4G&5.0G Wifi Onu Product Overview:

GL-E8021U-WF-D terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on the mature EPON technology, which have high ratio of performance to price, and the technology of 802.11 ac/n WiFi (2T2R), Layer 2/3, and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.

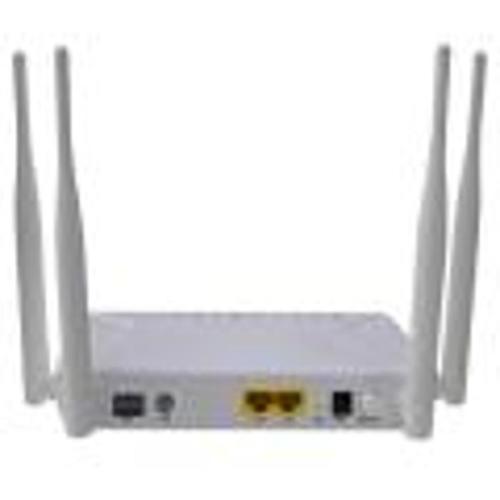

WIFI ONU with 2.4G and 5.0G Interface:

PON:Connect PON port with internet by SC type, single mode optical fiber cable;

LAN:RJ45 Port connects to local internet, speed 10/100Mbps or speed 10/100/1000Mbps;

CATV:CATV optical interface, support SC / APC optical pigtail connector for CATV access networks PON + CATV three wavelength signals;

Reset:Press down reset button and keep 5 seconds to make the device restart and recover from the factory default Settings;
Power:Connect with power adapter (DC 12 V/1A);

On/Off：Power turn on/off.

ONU with Dual Band Packing Details:
