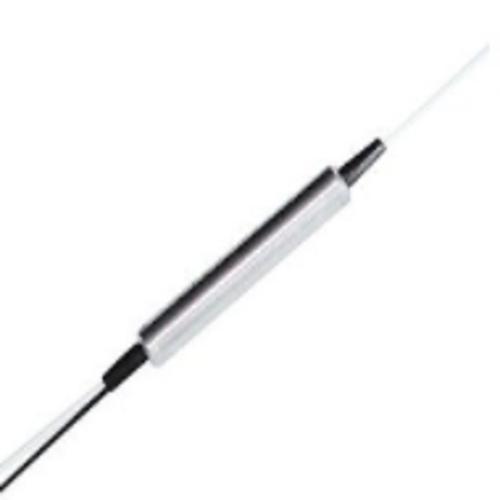

3 Ports FWDM Device

What is the origin of optical communication?

Since the "optical telephone" device designed by Bell in 1880 was proved that light waves can transmit information, the era that truly brought optical communications came after the 1980s. A complete optical communication system should meet three conditions: light source, optical fiber, and photoelectric detection. In 1966, the United States borrowed from the Chinese Dr. Gao Kun to publish a thesis, pointing out that "quartz glass fiber is used to transmit optical signals for communication." In 1970, Corning Corporation of the United States successfully developed optical fiber, which provided an ideal transmission medium for optical communications. During this period, semiconductor lasers were also successfully developed, and light sources with wavelengths suitable for optical fiber low-loss transmission played a decisive role in optical fiber communications, all of which made the development of optical fiber communications extremely rapid.

FWDM Splitter, also known as Filter WDM Splitter and Filter WDM, along with dense WDM splitter and coarse WDM splitter, are the most commonly used WDM device in construction of PON.

Product Information:

Product Features:

• High Channel Isolation, low Insertion Loss
• Epoxy free on optical path
• High Stability and reliability
• Material meet RoHS
• Meet GR 1209, GR 1221 requirement

Product Specification:

• Working Wavelength Range (nm): 1260~1650
• Passband Wavelength (nm): 1260~ 1360(customized)
• Reflection wavelength (nm): 1460~1650(customized)
• Pass Channel Insertion Loss (dB): Max 0.6
• Reflection Channel Loss (dB): Max 0.4
• Ripple (dB): Max 0.3
• Pass Channel Isolation (dB): Min 40
• Reflection Channel Isolation (dB): Min 15
• Directivity (dB): Min 50
• Return Loss (dB): Min 45
• Polarization Dependent Loss (dB): Max 0.1
• Polarization Mode Dispersion (ps): Max 0.1
• Maximum Optical Power (mW): 300
• Operating Temperature Range (℃):-5~+70
• Storage Temperature Range (℃):-56~85
• Optical fiber type: Corning SMF 28e+ or equal (customized)
• Optical fiber length (m): ≥0.1 (customized)
• Package dimension (mm): All glass for bare fiber type Ø4.0x26 / Steel tube for loose tube type Ø5.5x39

Product Applications:

• FTTx
• NGPON
• Broadband Networks
• Optical Add/Drop Multiplexing
• Telecommunications
• Metro Networks
• CATV Systems
