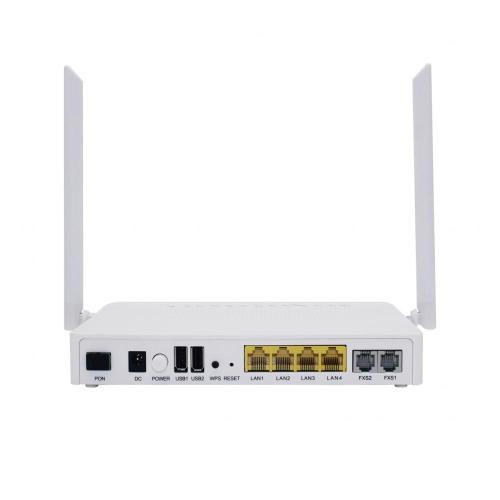

Dual Band GPON ONT 4GE+WIFI+2POTS+2USB

$47.00

10-99 Piece/Pieces
$46.00

100-299 Piece/Pieces
$45.00

300-499 Piece/Pieces
$44.00

≥500 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express,Others
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

What is POTS?

POTS: Analog telephone service, a narrow-band-like telecommunication tool used to transmit voice calls.

One of the main ports of triple play devices is the Phone Port, also known as Telephone Port, FXS Port, VoIP/FXS Port, providing users VoIP Function.

Product Services:

The GL-G8004U-V5 ONT is delivered with 4 10/100/1000 Base-T interface, supporting:
Auto-negotiation and MDI/MDIX auto-sensing
Built-in layer-2 switch
Advanced data features such as VLAN tag manipulation, classification, and filtering
Built-in layer-3 routing and residential gateway
2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface
USB 2.0 storage

2usb

Product Key Features:

Working Wavelength (nm): PON: TX1310, RX1490
The Light Emitting Power (dBm): 1~4 (GPON)
The Light Receiving Sensitivity (dBm): ≥-27
Optical Fiber Connector: PON: SC/UPC (Optical SC/APC)
The User Side Ethernet Ports: 4GE
USB: 2
POTS: 2
2.4G WiFi: 300Mbps
5G WiFi: 867Mbps
RESET: 1
The Power Supply (V/A): AV110～255V→DC12V 1.5A
Working Temperature (℃): -5~45

4GE+2POTS

Product Specification：

Compliant with ITU-T G.984 GPON standards
BoSA on board optical solution
1.244 Gbps Burst Mode Upstream Transmitter
2.488 Gbps Downstream Receiver
Compliant with ITU-T G.984.2 Amd1, Class B+
Wavelengths: US 1310nm, DS 1490nm
Multiple T-CONTs per device
Multiple GEM Ports per device
Flexible mapping between GEM Ports and T-CONT
Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
AES-128 Decryption with key generation and switching
FEC (Forward Error Correction) in both directions
DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
Mapping of GEM Ports into a T-CONT with priority queues based scheduling
Support Multicast GEM port and incidental broadcast GEM port.

1*PON port with wifi
