New Product GPON VOIP ONU 1GE 1FE 1POTS

What is this POTS port?

The voice interface is used to connect to a fixed line. If the fixed line is activated, you can make a call by simply connecting.which means this POTS/VOICE/VOIP/FXS port is used for telephone.

Product introduction:

It is EPON terminal device,work with OLT,it can provide Internet,VOIP,V..It is based on mature and stable cost-effective GPON technology,providing 1 PON port,2 10/1000M,1 VOIP port.Adopt single fiber WDN technology(downlink 1490nm,uplink 1310nm),require only one fiber to connect with OLT,the longest transmitting distance can be 40KM,support power down report function,support local WEB management function.

Product interface:

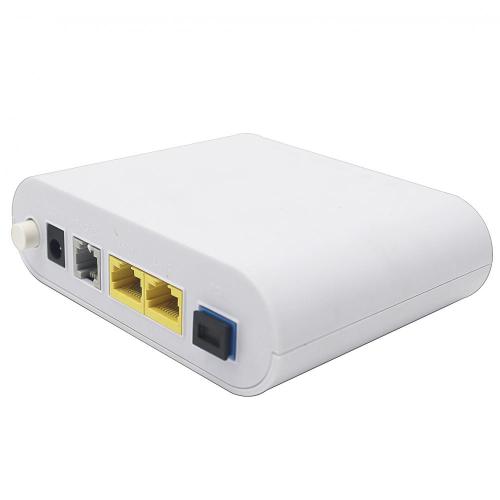

Ports:hardware connection,from left to right as per connection direction,connection sequence:RJ11 telephone port,internet port 2 to 1,reset button,USB port,DC12V port,power switch.Indicator light:LED definition from left to right:power,fiber G,fiber signal,broadband,telephone,internet port 1 to 2.

Port feature:1)HGU ONU product modality,support bridge and NAT mode. 2)BOB product process 3)802.11b/g/n wireless access 4)Provide VOIP port,support connecting normal telephone 6)12V/1.5A external power

Product key features:

1)Processor features:support 800MHz frequency ARM processor;support 32KB I-Cache and D-Cache

2)VOIP

1) Port:Power:external power 12V/1.5A;Internet access:2pcs.support 10/100/1000M self-adaption;Optical port:one SC/PC port;Telephone port:one RJ11 telephone port;2) hardware key equipment specification;CPU:MAC built-in 800Mhz  ARM processor MAC:ZX297100A FLASH:NAND FLASH 1Gbit DDR:1Gbit SLIC:Le9641

3) product size:Product size:163X125X50 mm

4) Reliability and environmental suitability

storage temperature humidity:-10°C—55°C   5%—95% non-condensing  Working temperature humidity:-10°C—50°C  5%—95% non-condensing

Atmospheric pressure: 62kPa—106kPa Anti-thunder:line-lin:require 1.5KV Port-Land:require 6KV Anti-static:air discharge require 8KV(refer to IEC 61000-4-2)Contact discharge:require 6KV(refer to IEC 61000-4-2) EMC: ETSI EN 300386,EN 55022(Class B)Max distance:40KM Max speed:1.25G Installation place:user access point
