8PON EPON OLT

What are the advantages of EPON?

EPON (Ethernet Passive Optical Network) Technology combines advantages from both PON (Passive Optical Network) technology and Ethernet technology: low in cost, high in bandwidth, strong in scalability, compatible with existing Ethernet, easy to manage, etc.

Web Management OLT can be regarded as OLT Device, Network Device, FTTB FTTX Equipment, or Fiber Optic Equipment that possesses Web Management function.

Product Overview:

GL-E8608T-DH is a small scale office end OLT device of FTTX telecommunication level independently researched and developed by GL Company; it conforms to IEEE802.3-2005 standard and the technical requirement V2.1 specification for EPON device of China Telecom; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV.

Product Features:

• 8 PN ports (1.25G)
• 4 uplink electronic ports (1G),4 uplink optical ports.
• 2 management ports (special software management)

• Frame: 19 inches 1U height
• Physical dimension: 440×260×43.6 (L×W×H, unit: mm)
• Power supply: AC 100-240V
• Power consumption: 35W

• Working temperature: 0～45℃
• Storage temperature: -30～60℃
• Relative humidity: 10～90% (non-condensing)

Product Application:

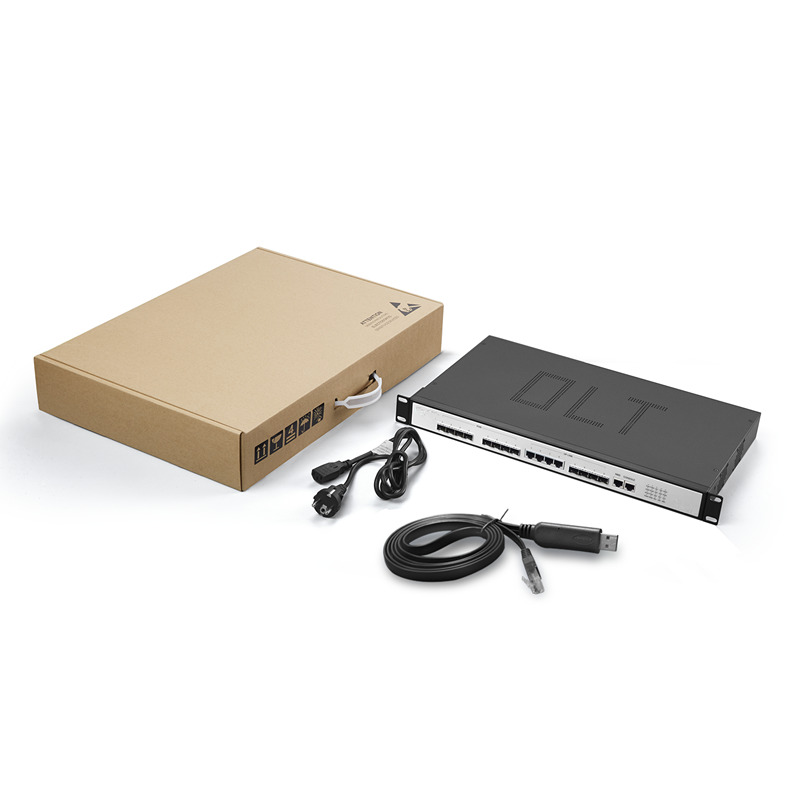

One Piece Including:

Packaging Details:
