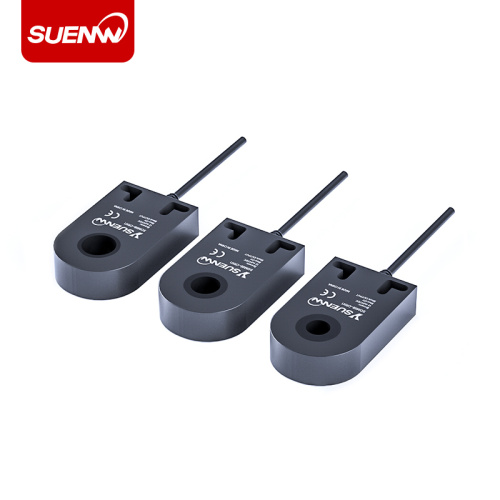

Ring Proximity Sensor SO-M30N1/M30P1
-
$35.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
Ring Proximity Sensor SO-M30N1/M30P1
- Suitable for detecting tiny metals passing through
- Adjustable knob that can be adjusted according to the size of the sensing object
- LED display on the front makes it easy to judge the output when in use
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
Output Mode
NPN N.O/N.C.
SO-M05N1
SO-M08N1
SO-M10N1
SO-M12N1
SO-M15N1
SO-M22N1
SO-M30N1
SO-M44N1
PNP N.O/N.C.
SO-M05P1
SO-M08P1
SO-M10P1
SO-M12P1
SO-M15P1
SO-M22P1
SO-M30P1
SO-M44P1
Sensing Hole Diameter
D=5mm
D=8mm
D=10mm
D=12mm
D=15mm
D=22mm
D=30mm
D=44mm
Minimum Detectable Object
0.7mm min
1.0mm min
1.2mm min
2mm min
3mm min
3.5mm min
Working Voltage
DC 10-30V
Current Consumption
15mA
Load Current
100mA max at DC 24V
Operating Temperature Range
-20℃-+60℃
Waterproof Grade
IP65
Outlet Method
Φ4.2×2m/3 lines
Application Power Supply unit
ST-1.ST-T2
Weight
Approx.100g
