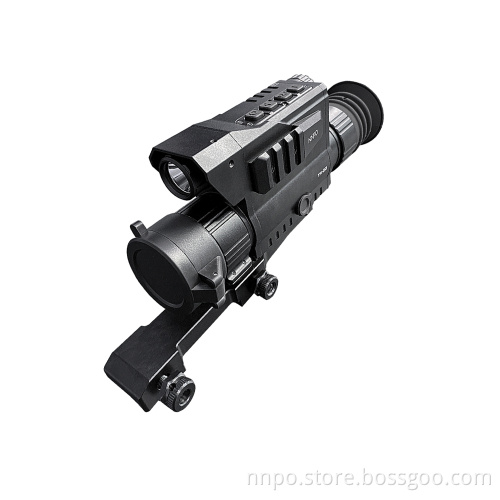

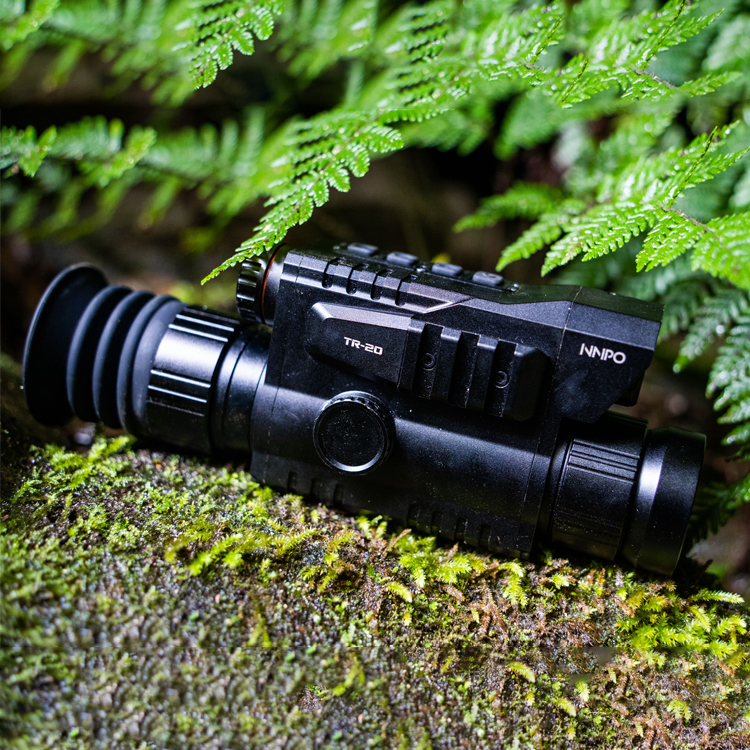

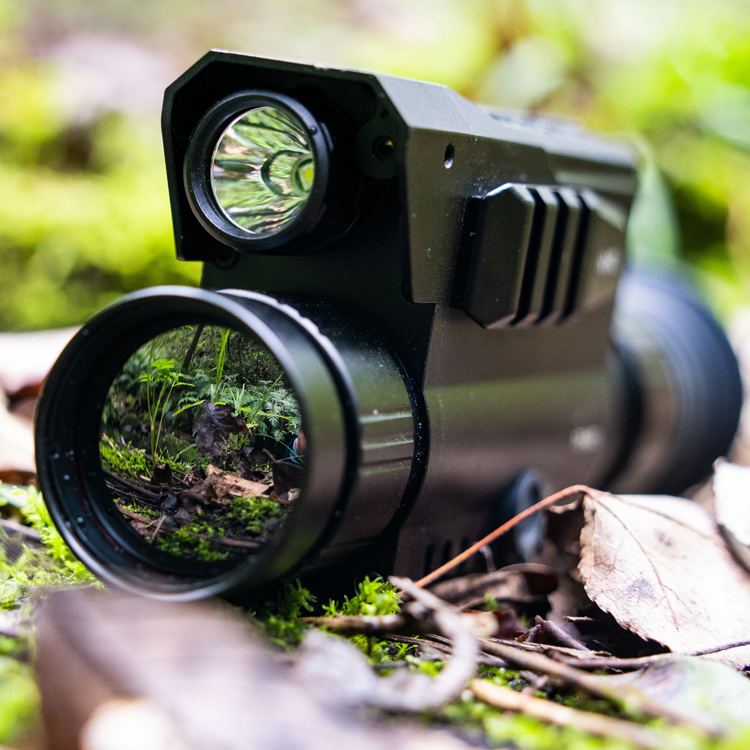

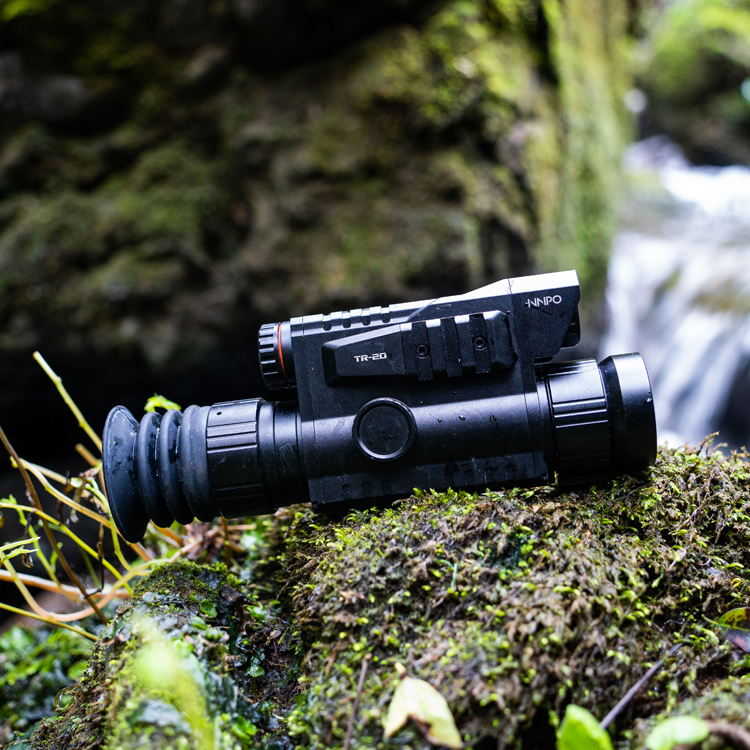

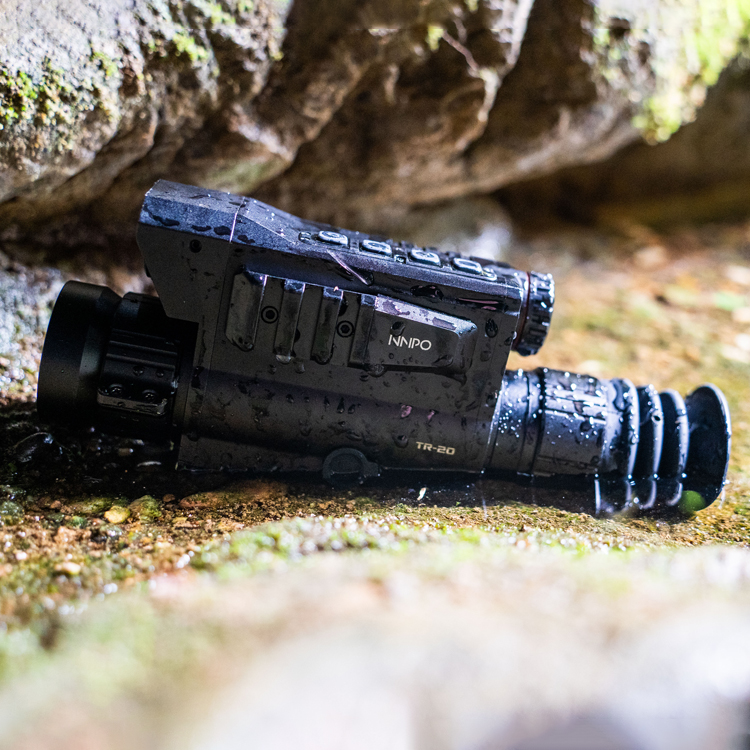

TR20 Thermal Monocular Night Vision Outdoor Infrared

$1750.00

1-49 Piece/Pieces
$1550.00

≥50 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Paypal,T/T
Incoterm:	EXW,FOB

Product Description

NNPO is a very great Thermal Imaging Monocular manufacturer, providiing many Optics products, such as thermal monocular, night vision and thermal scope.

Specification

TR20	25mmm
Resolution,Pixel	384×288
Refresh Rate	50Hz
Pixel Size, micron	12μm
Objective Lens	25mm/f1.0
Magnification	2.04 - 8.16 x
Digital zoom	2x,4x
Eyerelief	40mm
Field of View (HxV)	10.5 x 7.9
Dioptre adjustment, dpt	± 5
Reticle Type	8-Pattern optional, or “NO reticle”
Reticle Color	4 colors: White, Black, Red and blue
Image Palettes	White Hot / Black Hot/ red hot /green hot/ Iron red / Sky
Display Resolution	1280x960
Laser locator	1mw red dot CAL
Detection distance Human(1.8×0.5)m	1000
Detection distance Vehicle(2.3×2.3)m	2500
Recognition distance Human(1.8×0.5)m	500
Recognition distance Vehicle(2.3×2.3)m	1000
Battery Type	Li-ion 18650 Rechargeable Battery Replaceable
Battery Life (Operating)	5 hours
External power supply	USB type c
Protection rate	IP66
Operating Temperature	-30℃ ... +60 ℃
Storage Temperature	-50℃.. +70 ℃
Size (L × W × H),mm / inch	188.8mm51mm74.1mm
Weight (W/o battery),Kg/ oz	560g
Housing Materials	Aluminum Alloy
