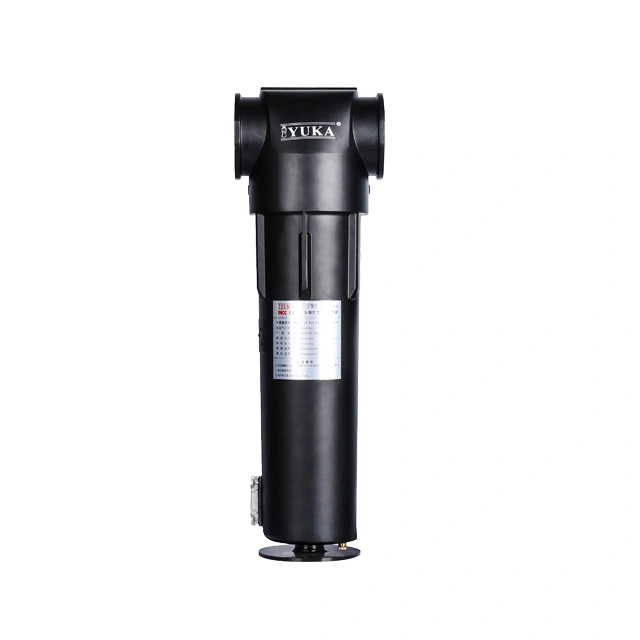

High Cyclone Compressor Water Separator

$410.16

1-19 Piece/Pieces
$389.65

≥20 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Yantian, Guangzhou, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	500pcs per day
Supply Ability:	500PCS Per Days
Payment Type:	T/T,L/C
Incoterm:	EXW,CIF,CFR,FOB
Certificate:	CE
HS Code:	8421199090
Transportation:	Ocean,Land,Air,Express
Port:	Yantian,Guangzhou,Shanghai

Product Description

Product description:
For compressed air

In terms of installation, water is the biggest problem. YUKA's gas-water separator can solve this problem simply and efficiently.

Our feature is to install the gas-water separator in the rear cooler, the gas storage tank and the downstream of the freeze dryer, as well as the key point of the pipeline installation. YUKA's air-water separator is designed to filter out up to 99% of the moisture in the compressed air, and the maintenance cost is very low.
Our cyclone water separator uses the effect of centrifugal motion to force liquid water to be separated from compressed air.

High-speed rotation causes the condensed water to adhere to the wall of the moisture separator air compressor. When the condensate has enough weight, it will fall to the bottom of the air water separator and be stored until it is discharged from the system by the automatic drain valve.
The compressor moisture separator has an aluminum housing. They can withstand operating pressures up to 10 bar g.

Product Feature
· 99.73% efficiency of condensate removal
· Inside & Outside resistace corrosion Treatment, prevent second pollution
· Grade A aluminum alloy material, Maxi. pressure up to 1.0 Mpa
· Zero pressure drop, low maintenance fee

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100psi g).
For the application in other working pressure, please refer to the correction factors:

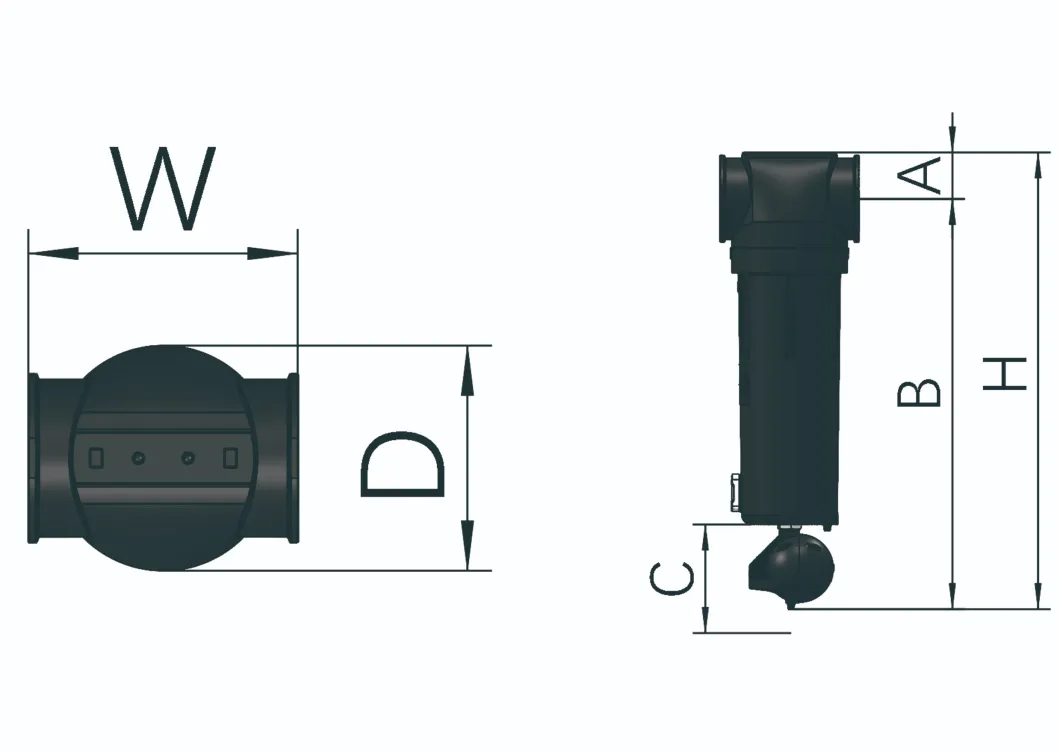

Model	Pipe size	Flow rates			Dimension(mm)
Model	Pipe size	L/S	m³/min	scfm	W(Width)	D(Depth)	H(Height)	A	B	C (clearance for housing)
FWS010	RC1/2"	40.0	2.4	84.5	96	79	233	29	198	118
FWS020	RC3/4"	60.0	3.6	127.1	96	79	233	29	198	118
FWS050	RC1"	75.0	4.5	158.9	96	79	268	29	233	153
FWS060	RC1"	125.0	7.5	264.8	138	111	339	37	296	208
FWS070	RC1-1/2"	166.7	10.0	353.1	138	111	339	37	296	208
FWS100	RC2"	300.1	18.0	635.6	174	142	669	58	607	469
FWS110	RC2-1/2"	416.8	25.0	882.8	174	142	669	58	607	469
FWS131	RC2-1/2"	700.0	42.0	1483.1	220	184	726	74	649	514
FWS140	RC3"	833.5	50.0	1765.6	220	184	726	74	649	514
FWS140F	DN80/DN100	833.5	50.0	1765.6	300	184	746/761	74	649	514
FWS150	RC4"	1000.2	60.0	2118.7	220	184	726	74	649	514
FWS150F	DN100/DN125	1000.2	60.0	2118.7	300	184	761/776	74	649	514
FWS170	RC4"	1166.7	70.0	2464.0	220	184	983	74	906	764
FWS170F	DN100/DN125	1166.7	70.0	2464.0	300	184	1018/1033	74	906	764
Technical requirements	Maximum operating pressure: 10 barg Operating temperature:1.5°C~ 80°C

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51


YUKA Package
RC2

YUKA service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty

Q:Why choose us?
a. 24 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.

Frequently Asked Questions
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
