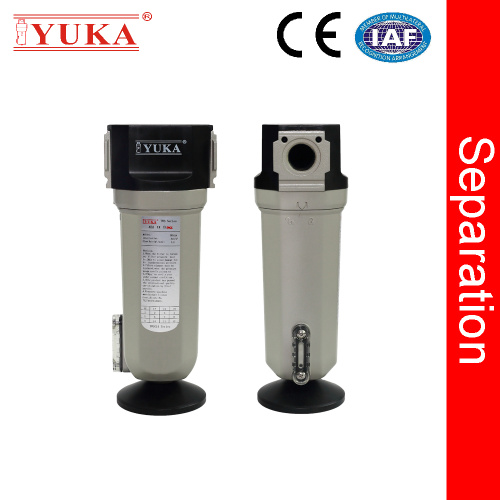

Compressor Moisture Separator For Kinds Industries
-
$242.501-19 Piece/Pieces
-
$230.38≥20 Piece/Pieces
- Transportation:
- Land, Ocean, Air, Express
- Port:
- Shenzhen, Guangzhou , Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500pcs per day |
| Supply Ability: | 500PCS Per Days |
| Payment Type: | T/T,L/C |
| Incoterm: | CIF,CFR,FOB,EXW |
| Certificate: | CE |
| HS Code: | 8421199090 |
| Transportation: | Land,Ocean,Air,Express |
| Port: | Shenzhen,Guangzhou ,Shanghai |
Problem in Compressed Air System
There is large amount of water in compressed air system, which will corrode the pipeline, damage the valves permanently, air cylinders and pneumatic tools and devices, reduce efficiency of the after-cooler/ heat exchanger.
TWS Series water separator with high efficiency of separated gas and water, according the grativity,high speed cyclone rotate to distinguish the water and water, condensate will be remove by the auto inner drain. Zero pressure loss and save power and save your money.
Feature & Advantage
· Protect the coalescing filter from a large amount of liquid pollution;
· Helps to provide air quality, in line with ISO8573-1:2010, the international standard for compressed air quality;
· Suitable for all compressed air applications, suitable for all compressor types;
· Low operating cost, low pressure loss, low life cycle cost;
· All WS series gas-water separators are covered by a 15-year shell warranty.
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100psi g).
For the application in other working pressure, please refer to the correction factors.
| Model | Pipe Size | Flow rates | Dimension(mm) | ||||||
| L/S | m³/min | cfm | W(Weight) | H(High) | A | B | C (clearance for housing) | ||
| TWS009 | RC1/4" | 15.0 | 0.9 | 31.8 | 81 | 197 | 24.6 | 173.9 | 50.5 |
| TWS010 | RC3/8" | 25.1 | 1.5 | 53.0 | 81 | 197 | 24.6 | 173.9 | 50.5 |
| TWS011 | RC1/2" | 46.8 | 2.8 | 98.8 | 108 | 249 | 30.1 | 220.6 | 53.3 |
| TWS012 | RC3/4" | 66.8 | 4.0 | 141.2 | 108 | 249 | 30.1 | 220.6 | 53.3 |
| TWS014 | RC3/4" | 86.8 | 5.2 | 183.6 | 108 | 289 | 30.1 | 260.6 | 53.3 |
| TWS016 | RC1" | 130.3 | 7.8 | 275.3 | 133 | 332 | 40.7 | 291 | 59.6 |
| TWS018 | RC1-1/2" | 175.4 | 10.5 | 370.7 | 133 | 332 | 40.7 | 359.8 | 59.6 |
| TWS020 | RC2" | 300.0 | 18.0 | 636.0 | 170 | 617 | 52.92 | 662.97 | 59.6 |
| Technical requirements |
Maximum operating pressure: 10barg Operating temperature: from 1.5℃ to 80°C |
||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
