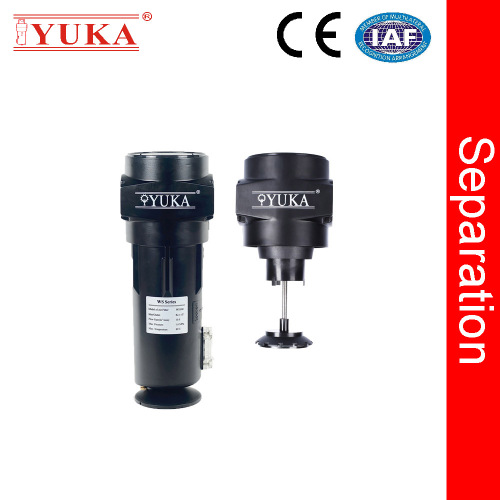

Hydrocyclone Separator For Air Tank Air Compressor

Why must the air supply system be treated?

The compressed air output from the air compressor contains a lot of harmful substances. If these impurities are not removed by proper methods, it will cause great harm to the air supply system: Deteriorated lubricating oil will deteriorate rubber, plastics, and sealing materials, block small holes, and cause valve action to fail.

Moisture and dust will cause rust and corrosion of metal parts and pipelines, cause blocking or wear of moving parts, and cause malfunction and air leakage of pneumatic components. Moisture and dust will also block the throttle orifice or filter: In cold areas, moisture will condense. Ice can cause the pipeline to freeze or crack.

Due to poor air quality, the reliability and service life of the pneumatic system are greatly reduced, and the resulting losses often greatly exceed the cost and maintenance cost of the air source treatment device. Therefore, the correct selection of the air source treatment system is absolutely necessary.

YUKA'S Air Compressor With Water Separator BENEFIT

* Filter Water Separator reduce moisture rusting of pipelines and damage to valves, cylinders, electronic components and other  equipment;

* Protect the filter in front of the dryer and suction dryer

* Efficiently remove liquid in compressed air

* Improve air quality

The Water Separator Filter Air Compressor FEATURE & ADVANTAGE

①99% Separation efficiency from compressed air system

②Zero pressure drop, saving energy and money

③Internal & external anti-corrosion treatment, increase spanlife and ensure separation efficiency

④With Strong structure, 15 years warranty, cost reasonable

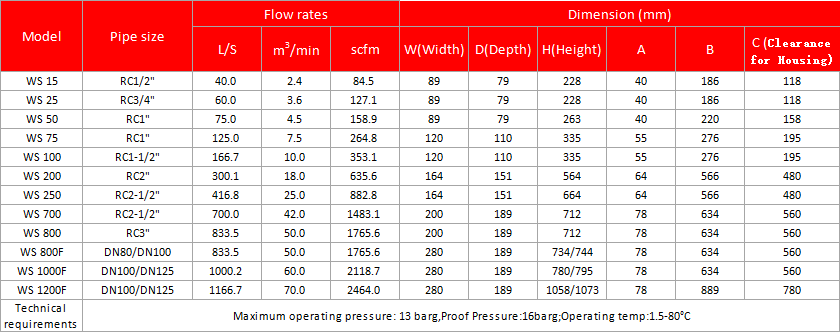

TECHNICAL SPECIFICATION

The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g). For the application in other working pressure, please refer to the correction factors.

PARTS IN DETAIL
