BSP Taper Water Separator for Centrifugal Air Compressor
-
$750.001-19 Piece/Pieces
-
$710.00≥20 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Shanghai, Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Supply Ability: | 500pcs per day |
| Payment Type: | T/T |
| Incoterm: | CIF,EXW,CFR,FOB |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Shanghai,Ningbo |
CycloneWater-Gas Separator
YUKA Filtration offers a range of Compressed Air Water Separators with proven cyclone technology and ahead-thinking housing design that drives market leading water removal efficiencies.
Our Compressed Air Filter Water Separator is available in a broad range of models with connection sizes ranging from 1/2” to DN125”Rc (BSP Taper).
YUKA Filtration Air Compressor With Water Separator has a maximum operating temperature of 176 ˚F (80˚C), an operating pressure of up to 142.85 psig (10 barg), and flow capacities up to 85 SCFM (144 Nm³/hr) up to 1766 SCFM (300 Nm³/hr).
Used to remove bulk liquid following the compression of air, installing a Water Separator reduces the risk of contamination to production equipment, product spoilage, and costly shutdowns caused by damage of high levels of moisture and condensate in the system.
Working Principle
The compressed air gas-water separator is composed of a housing, a cyclone separator, and sewage components. When the compressed air containing a large amount of oil and water solid impurities enters the separator, it spins down along its inner wall. The centrifugal effect produced causes the liquid water to separate out of the vapor stream and flow down the wall. Under the action of gravity, it flows into the separator. The bottom of the device is discharged by the automatic drain valve.
Feature & Benefit
①99% Separation efficiency from compressed air system
②Zero pressure drop, saving energy and money
③Internal & external anti-corrosion treatment, increase spanlife and ensure separation efficiency
④With Strong structure, 15 years warranty, cost reasonable
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g). For the application in other working pressure, please refer to the correction factors.
| Model | Pipe size | Flow rates | Dimension (mm) | ||||
| L/S | m³/min | scfm | W(Width) | D(Depth) | H(Height) | ||
| WS 15 | RC1/2" | 40.0 | 2.4 | 84.5 | 89 | 79 | 228 |
| WS 25 | RC3/4" | 60.0 | 3.6 | 127.1 | 89 | 79 | 228 |
| WS 50 | RC1" | 75.0 | 4.5 | 158.9 | 89 | 79 | 263 |
| WS 75 | RC1" | 125.0 | 7.5 | 264.8 | 120 | 110 | 335 |
| WS 100 | RC1-1/2" | 166.7 | 10.0 | 353.1 | 120 | 110 | 335 |

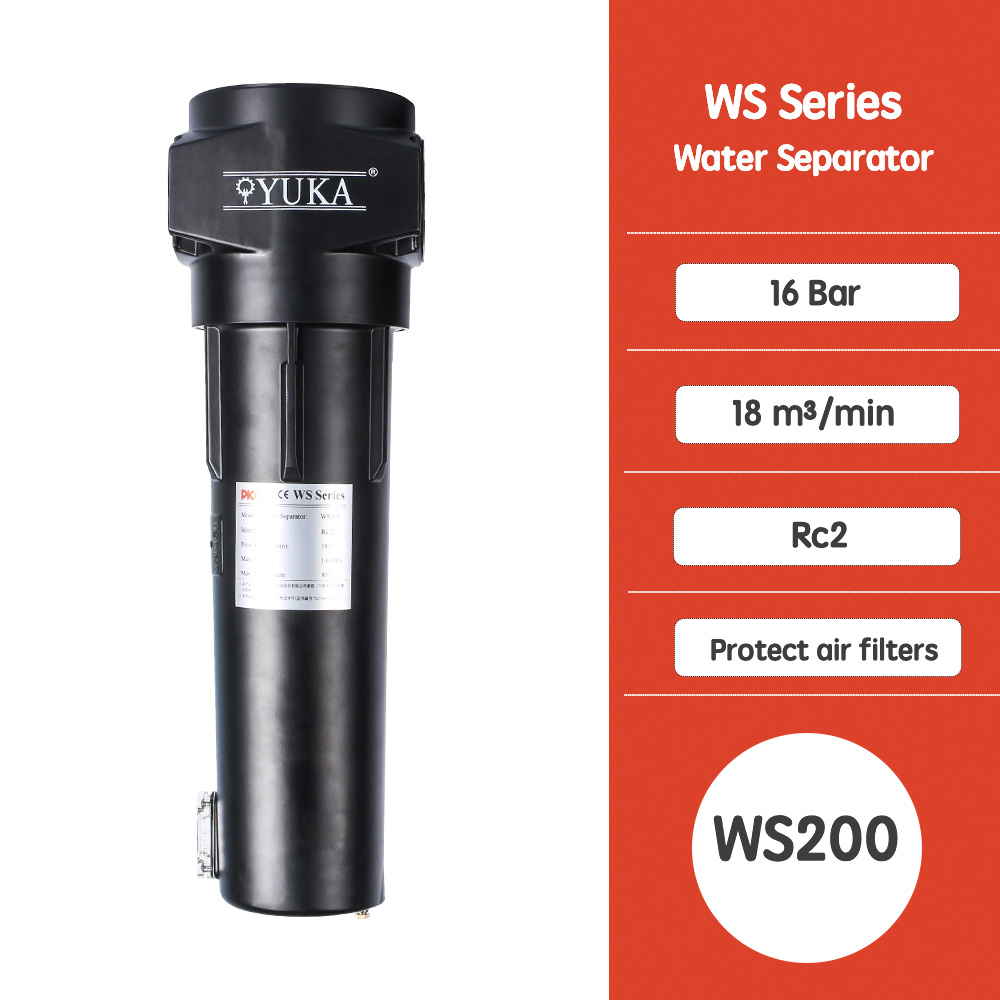

| WS 200 | RC2" | 300.1 | 18.0 | 635.6 | 164 | 151 | 564 |
| WS 250 | RC2-1/2" | 416.8 | 25.0 | 882.8 | 164 | 151 | 664 |
| WS 700 | RC2-1/2" | 700.0 | 42.0 | 1483.1 | 200 | 189 | 712 |
| WS 800 | RC3" | 833.5 | 50.0 | 1765.6 | 200 | 189 | 712 |
| WS 800F | DN80/DN100 | 833.5 | 50.0 | 1765.6 | 280 | 189 | 734/744 |
| WS 1000F | DN100/DN125 | 1000.2 | 60.0 | 2118.7 | 280 | 189 | 780/795 |
| WS 1200F | DN100/DN125 | 1166.7 | 70.0 | 2464.0 | 280 | 189 | 1058/1073 |
| Technical requirements | Maximum operating pressure: 10 barg Operating temperature:1.5~ 80°C | ||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |

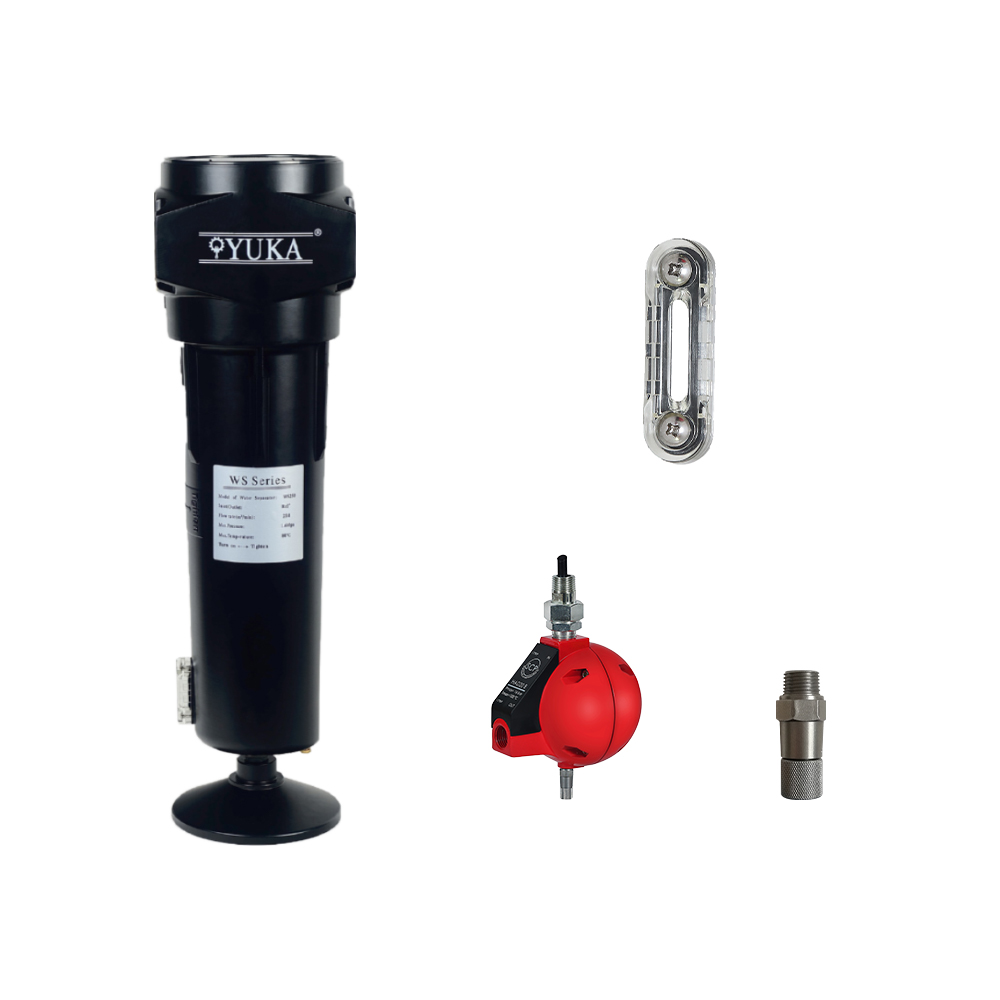

Product Parts
