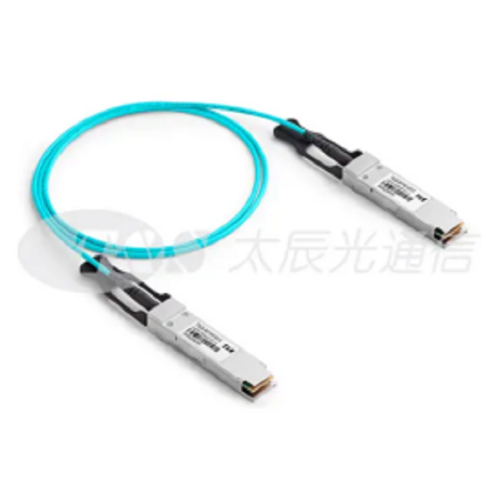

100G QSFP28 AOC

T&S Communication TSQS-851HG-xxxC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+SR4 for 100 or 40 Gigabit Ethernet, Infiniband FDR/EDR Applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850 nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP(MPO) connector.

Features of china 100g qsfp28 aoc
Four-channel full-duplex active optical cable with QSFP28 plugs

Produced by T&S, a professional AOC manufacturer, the 100G QSFP series has multi-rate capability: 10Gb/s and 25Gb/s per channel

Reliable VCSEL array technology using MMF

Hot Pluggable

Power dissipation:<3.5W

Operating case temperature 0℃ to 70℃

RoHS compliant

Applications of 100g aoc cable
IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4 28G Fiber Channel

Infiniband FDR/EDR

If you are looking for a reliable fiber supplier, don't hesitate to contact us!
