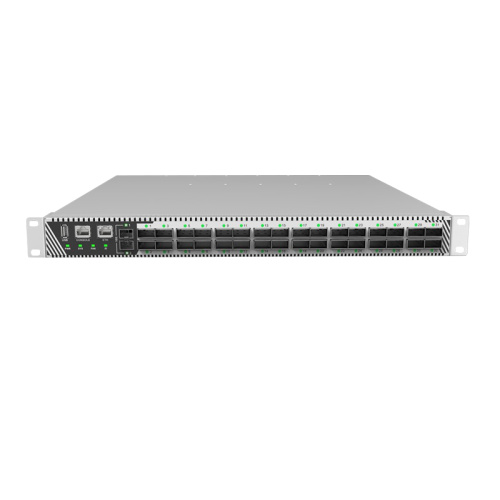

32 x 400G ToR Spine Leaf Data Center Switch
ideally suited for deployment where high performance is the most important, or,with 12.8Tbps total performance – as an ultra-powerful appliance.
S6750-2X32DQM-AC is primarily packaged to meet the requirements of deployments that require smaller form factor and access to all network ports and management ports from the front side of the product. It provides total of 32x400GbE + 2x10GbE ports.
In order to be able to fit all access, uplink and data ports on the front side of a 1U system, all data plane connectivity to S6750-2X32DQM-AC is provided through QSFP56-DD sockets. Each QSFP56-DD socket can operate as a single 400GbE port, or with a break-out splitter cable a number of up to eight lower speed ports. QSFP56-DD sockets support 400GBASE-SR8, 400GBASE-FR8, 400GBASE-LR8, 400GBASE-ER8 and 400GBASE-DR4 physical interfaces.
Cut-through with ultra-low-latency
32x400Gbps QSFP56-DD in 1U form factor
256x56Gbps High Speed Serdes MAC in a single PFE Packet Forwarding
2x10Gpbe SFP+ and 1xGbaseT RJ45 Management Plane Ports
Six hot-swappable FAN AFI/AFO
Two hot-swappable PSU
Product Specifications
Model
Number
S6750-2X32DQM-AC
Ports
32×400GE QSFP56-DD
2×10GE
SFP+
Throughput
540Mpps
Switching capacity
12.8 Tbit/s
Switch ASIC
Marvell
Falcon 98CX8580
CPU
Intel
Broadwell-DE D1507
Flash
64GB(SSD)
RAM
16GB
FANs
5+1
AFI/AFO in and out option
PSU
2 x 1600
W hot swap AFI/AFO
VLAN
4K VLANs; 1:1 & 2:2 VLAN Mapping; QinQ, selective
QinQ; MAC based VLAN; Protocols based VLAN
Guest VLAN; Voice VLAN
Port trunk
LACP; 32 trunk groups at most, up to 8 ports in each
group
MAC
128K MAC; Static MAC; Dynamic MAC;
IP routing
Static routing; OSPF;ISIS;BGP,GRE
Multicast
IGMP snooping, IGMP filter, IGMP Proxy and IGMP fast leave;
Multicast replication between VLANs; PIM-SM;PIM-DM; Source Specific Multicast (SSM)
Reliability
STP, RSTP, MSTP;R-Link protection, VRRP, Trunk,
Redundancy power
BPDU Guard, Loop protection, Root protection;
QoS/ACL
Packet filtering at Layer 2 to Layer 4, filtering out
invalid frames based on source MAC address, destination MAC address, source
IP address, destination IP address, TCP/UDP port number, protocol type and
VLAN ID
Time range ACL
Rate limiting with granularity at 64Kbps
Port-based traffic policing and two-rate three-color
CAR
8 queues on each port
Flexible
scheduling algorithms, including SP/PQ、DRR、SP/PQ+DRR
Re-marking
of the 802.1p priority and DSCP priority
Security
User
privilege management and password protection
DoS
attack defense, ARP attack defense, IP source guard
Binding
of the IP address, MAC address, interface
Port
isolation, Port security
Black
hole MAC address entries
Limit
on number of learned MAC addresses
802.1x
authentication, RADIUS authentication
SSH
v2.0
CPU
protection
Data Center feature
EVPN,VXLAN,M-Lag
Energy saving
Dynamic
fan speed adjusting
Management & maintenance
Port
mirroring and Flow-based mirroring
Configuration
via CLI, Telnet, Console port
SNMP
v1/v2/v3, RMON, LLDP, Cluster network, Syslog, Traplog
Third-Party
GUI management platform based on SNMP
Loading
and upgrade via FTP、TFTP
Port
loopback detection
Operating environment
Operation temperature: 0℃ to 55℃
Relative humidity:10%-90% (non-condensing)
Input voltage
AC: Rated voltage range:100V to 240V AC, 50/60Hz
Maximum voltage range:90V to 264V AC, 50/60Hz
AC: Rated voltage range:100V to 240V AC, 50/60Hz
Maximum voltage range:90V to 264V AC, 50/60Hz
Dimensions
(W×D×H）mm
440×558×44
Power consumption
≤3200W
Weight(GW)
<11 kg
Product Highlights
Engine that support 1/10/25/56 port speed modes
